Manufacture Pressurized Evacuated Vacuum Tube Solar Collector

  • 2 - 14 Sets
    $280.00
  • 15 - 29 Sets
    $275.00
  • 30 - 49 Sets
    $273.00
  • >=50 Sets
    $271.00
Pressure:
Pressurized
Heating System:
Batch / ICS (Passive)
Lead Time:
Quantity(Sets) 1 - 10 11 - 20 21 - 50 >50
Est. Time(days) 18 18 18 Negotiable
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 50 Sets)

More

Graphic customization (Min. Order: 50 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Circulation Type:
Indirect / Closed Loop (Active)
Connection Type:
Split
Installation:
Wall Mounted
Housing Material:
aluminum alloy
Certification:
CE, Solar Keymark,ISO,SRCC
Capacity:
200
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
JXSPC-10
Application:
bathroom,hotel project
Vacuum tube:
58*1800mm
Frame:
Alumimum Alloy
Manifold:
Aluminum alloy
Insulation layer:
rock wool
Heat type:
three target coating vacuum tube
Channel:
TU2 copper
Warranty:
5 Years
MOQ:
1 set
Payment:
TT/LC
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard carton for vacuum tube solar water heater.
Port
Shanghai/Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 11 - 20 21 - 50 >50
Est. Time(days) 18 18 18 To be negotiated

Manufacture Pressurized Evacuated Vacuum Tube Solar Collector

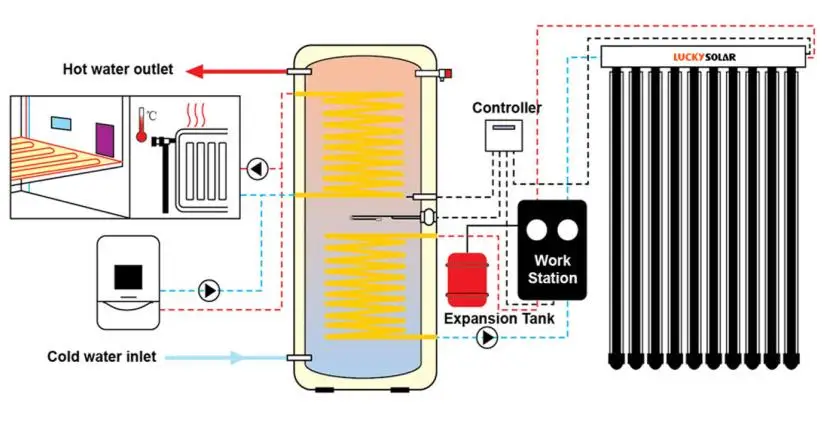

How it works

1.The solar collector usually connect the pressurized water tank or other device.

2. The heat pipe vacuum tube absorb  the sunshine and transfer the heat to condenser.

3.The manifold channel will be heated by condenser through heat exchanger.

4.Through the circualtion pump.the whole system will be heated.




Characteristics



1.Adopts red copper channel, with great performance of heat exchange.

2.Utilize copper heat pipes containing special medium liquid with low boiling point.

3.Work well in all climates,can be functioning well in -40 degrees celsius.

4.No water in the tube, no risk of freezing.

5.Can withstand high water pressure of up to 1.2 Mpa.

6.The collector always be applied in water tank ,swimming pool,and hotel project.

double coil Split SWH.jpg

Solar collector details

JIXIANG SOLAR COLLECTOR.jpg

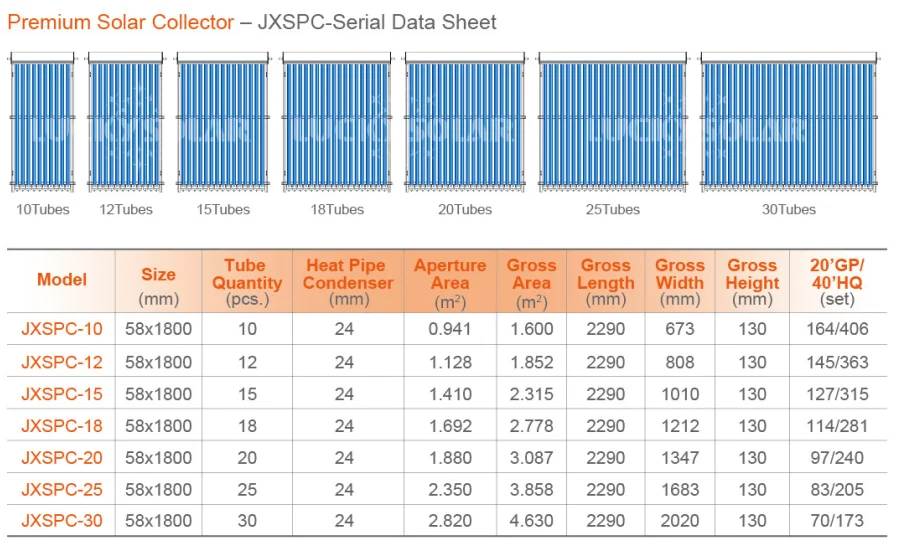

 Specification

Model

JXSPC-100

JXSPC-150

JXSPC-200

JXNP-250

JXNP-300

Tube Qty

10

15

20

25

30

Weight (kg)

32

48

64

77

96

20GP/sets

164

127

97

83

70

40HQ/sets

406

315

230

205

137

Manifold

Aluminum alloy

Manifold head pipe

TU2 copper

Insulation layer

Rock wool or fiber glass

Heat type

Three target coating evacuated tube

Tube size

58*1800 mm

Bracket

1.2 mm galvanized steel

Bracket angle

25,38,45 optional, pitched roof or flat roof optional

Certification

Passed CE / ISO9001/solar keymark/SRCC

Package

standard carton box (wooden box for sample)

MOQ

1 set

Delivery time

10-15 days

Service & guarantee

The vacuum tubes are guaranteed for 10 years, the main body for 5 years and appurtenance for 1 year.

Each container we will give you 2% vacuum tubes and accessories for free charge

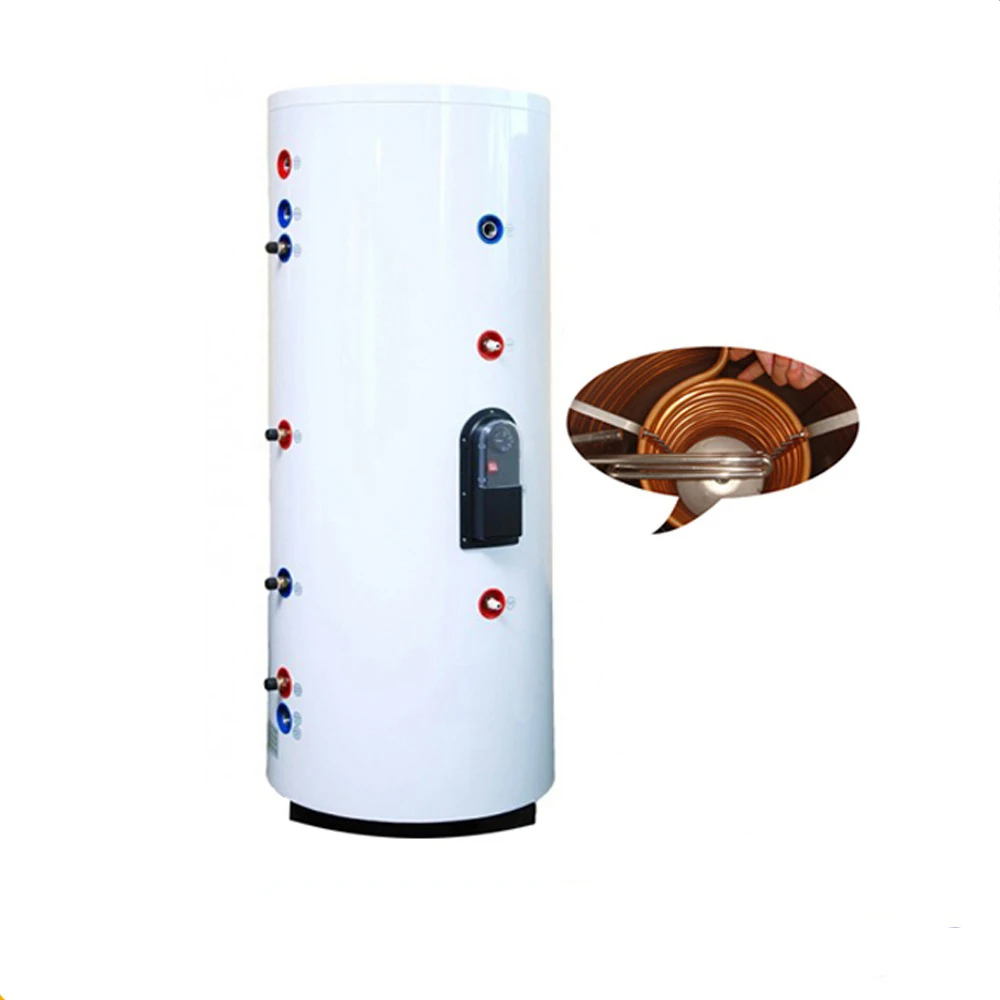

Water tank specification



1.Inner tank:SUS 304 stainless steel

2.Outer tank: Color steel

3.Insulation layer: polyurethane foam

4.Accessory:T/P valve,mag rods,electric heater

5.Capacity:100/150/200/250/300/400/500/1000 liter

6.Heat exchanger:12 mm size Copper coil ( single or double copper coils)

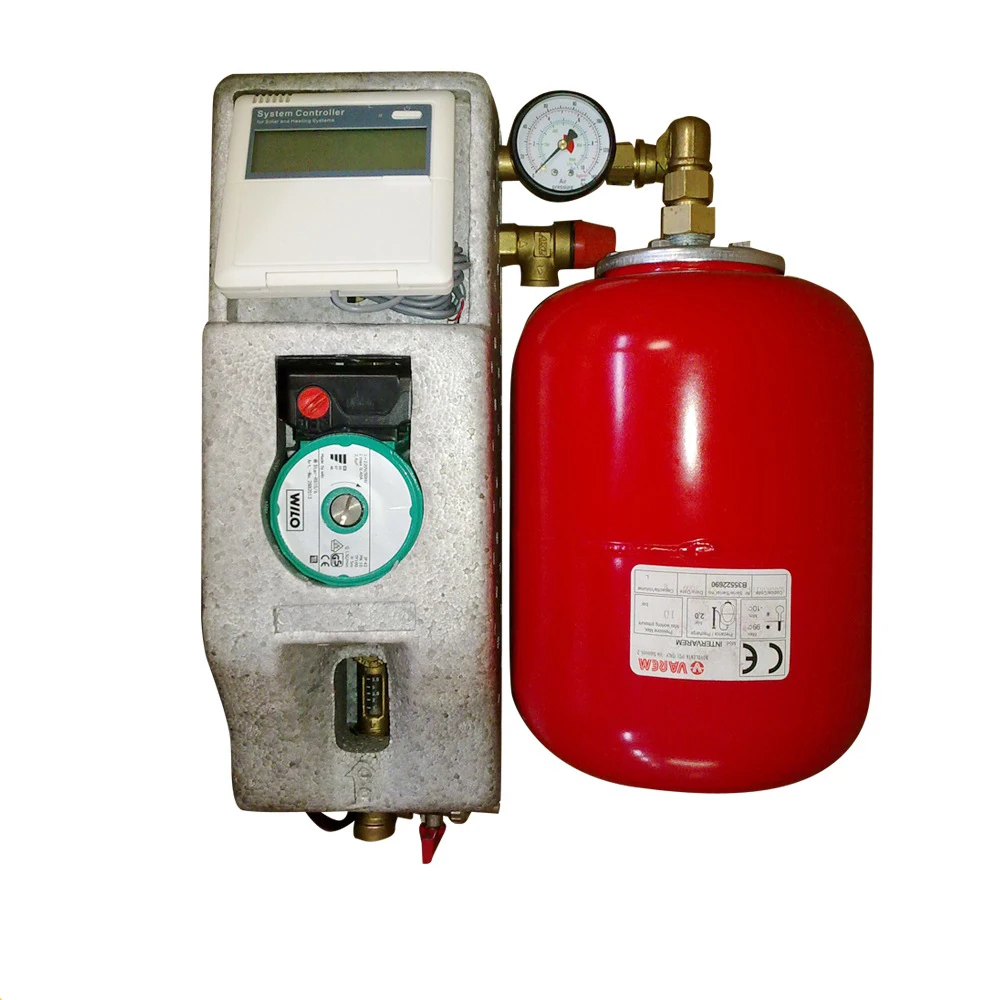

working station - .jpg

Workstation specification

1.Controller type: SR 81

2.Circualtion pump: wilo RS15/6

   water head: 3-5 meter,flow rate: 15L/min

3.Expansion pump:5/8/12/24 L

4.Voltage:220V/50 HZ or 110V/60HZ





Our Service

Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for you to choose.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. 5 years warranty for the water tank, 10 years for vacuum tube, 1 year for accessory



Company Introduction



Haining Jixiang Solar Energy Co.,Ltd(Lucky) is a new high-tech company

specializing in developing and utilizing of solar energy, Locating in Haining city,

we are specialized in the research and application of solar energy and manufacture

of all kinds of solar water heaters, eco-friendly oven and integrative ceiling and PVC panels ect.
