What is solar water heating system the first popular type of unpressurized Bearing Type of Solar Water heater

  • >=1 Sets
    $120.00
Pressure:
Unpressurized solar water heating
Heating System:
Thermosyphon (Passive) solar water heating
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 12 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Free spare parts, Return and Replacement
Warranty:
5 years, 5 Years
Application:
OUTDOOR, HOTEL, Commercial, Household, Residential
Power Source:
Solar
Type:
Evacuated Tube
Circulation Type:
Direct / Open Loop (Active)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
color steel or stainless steel
Certification:
CE, SRCC SOLAR KEYMARK CE CCC ISO
Capacity:
160
Place of Origin:
Zhejiang, China
Brand Name:
LUCKY SOLAR
Model Number:
JXNPS-58/1800-16
Product name:
non pressure solar water heating system
Outer tank material:
Stainless Steel 201/304
Inner tank material:
SS304-2B / SS316
Insulation layer:
55mm Polyurethane
Frame material:
Aluminum/SUS304 Stainless Steel
Tube quantity:
16pcs*58/1800mm
Collector type:
Three Target Vacuum Tube
Accessories:
Assitance Tank
Packaging & Delivery
Packaging Details

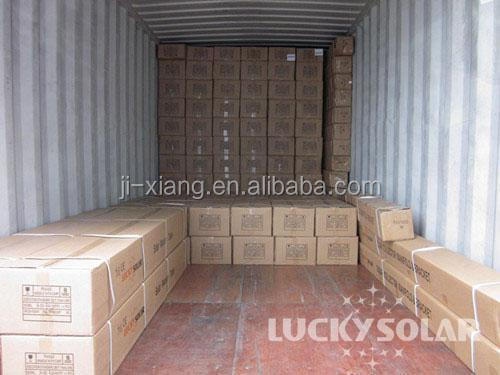

carton package for container, wooden box for samples
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 12 To be negotiated

What is solar water heating system, To see what our company to do:

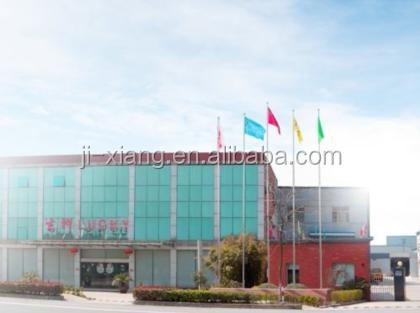

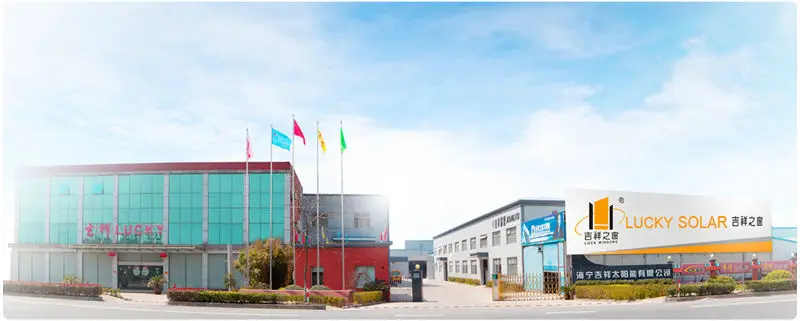

Company Information



 Haining Jixiang Solar Energy Co.,Ltd(Lucky) is a new high-tech company specializing in developing and utilizing of solar energy, Locating in Haining city, we are specialized in the research and application of solar energy and manufacture of all kinds of solar water heaters, eco-friendly oven and integrative ceiling and PVC panels ect.



Our ability : 5000pcs/month.



China factory supplier. Take sample order, min order 1pcs.



Our Services



1.We have 10 years solar export experience.



2.We offer different materials from different regions experience.



3.We accept the custom-made according to your specification.



4.We provide design drawing and installation training for our clients.



5.Our vacuum tubes are guaranteed for 10 years and the main body for 5 years.



6.1% of the total tubes are available as spare tube, even there are some tubes broken during the shipping, it doesn’t affect your sale, including accessories.



Why choose us?



1.Complete International Certificates: CE, Solar KEYMARK, TUV, SRCC, SGS, ISO, FSEC, ONNCCE, GMC, ALIBABA etc.



2.The first grade product quality: All passed EN12975(12976)-1,2, the heat efficiency of Solar Keymark certificate is 0.73209 in the top of China. Very rarely factory can pass EN12976 in China.



3.We are full export experience 10 years, over 60 countries in the world.



4.Own the best group of R&D, the best quality and the best service for customers.



5.Lucky Solar is a well-known & reputable brand in China, registered 18 countries brand trademark



6.OEM/ODM is available.



Product Description





 HAINING JIXIANG SOLAR WATER HEATER  what is solar water heating

LUCKY - Company profile.jpg



How it Works :
The design of this type uses the all-glass evacuated solar collector tubes as the heat absorb element. The high vacuum degree of the clearance between the outer and inner tube can reduce the heat emission which caused by convection and conduction to a very low level. All-glass evacuated tube transfers sun energy into heat energy by high absorption rate and low emittance rate of layer films. Depend on the different density between the hot water and the cold water, a cycle created in the tube which hot water ascending and cold water descending status. Keeping natural circulation like this, the water in the tank will be heated.



Material:
1. Inner tank: SUS304-2B stainless steel
2. Outer tank: Color steel
3. Insulation: Polyurethane
4. Frame: Stronger galvanized steel







LOGO CERTIFICATES -500





Characteristics
1. Beautiful appearance, steady structure, higher grads.
2. Inner and outside water tank shell all are welded by argon arc.
3. The tubes and frame are adjustable, power bearing is average, and can assure the vacuum tubes to use long time.

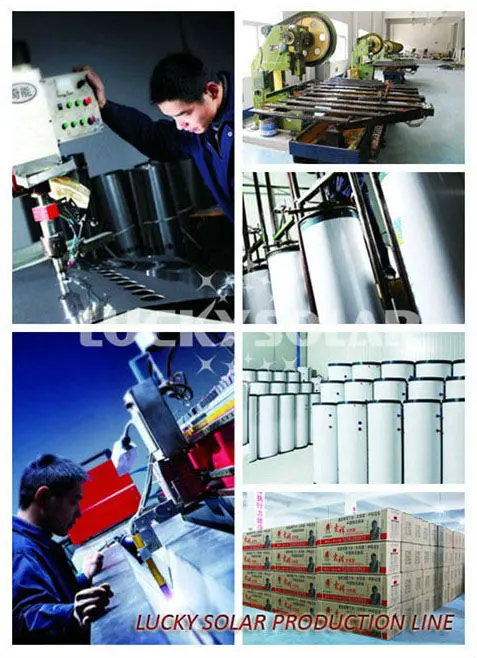

LUCKY - production line 1.jpg475 58 1800 15 tubes 143L SS heat pipe solar water heater Water tank under foaming 1_.jpg



Non-Pressure Solar Water Heater Technical Data:

WATER STORAGE TANKS SPECIFICATION

Material of out tank

High quality Painted steel/ Stainless steel.

Material of inner tank

Food grade SUS304-2B stainless steel.

Tank insulating layer

Imported polyurethane can conserve the heat for maximum 72 hours

Inlet and outlet hole

Male G 1/2

Tank size

420,460,470,475,480,500mm or Customer demand

Welding:

Argon arc welding

EVACUATED VACUUM TUBES SPECIFICATION

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube dia. & thickness

Ø58±0.7mm; Glass thickness 1.6±0.15mm

Inner tube dia.& thickness

Ø47±0.7mm; Glass thickness 1.6±0.15mm

Tube size

58*1800mm

Absorptive coating property

Structure

AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN

Sediment method

Single target or Three targets - magnetron sputtering plating

Specific absorption

0.90-0.93(AM1.5) / 0.93-0.96(AM1.5)

Emission ratio

0.05-0.075(800C±50C) / 0.04-0.06(800C±50C)

Solar irradiation for obtaining a preset water temperature

Φ=58 H≤4.7MJ/m²

   H=4.1-4.4MJ/m² / H=3.7-4.2MJ/m²

Vacuum tightness

5.0×10¯³ Pa

Idle sunning property parameters

220-260 m².C/KW / 260-300 m².C/KW

Average heat loss coefficient

ULT=0.6~0.7W/(M2.0C) / ULT=0.4~0.6W/(M2.0C)

Resistant Hail

≤25mm

Useful life

15 years

BRACKET

Bracket:

Stronger galvanized steel / Stainless steel/aluminium alloy

Bracket angle:

0,18,22,38,45 optional, pitched roof, flat roof optional.

Fastening pieces:

Made of zinc-coated stainless steel..

MODEL No.

Tube Size

Tube No.

Tank Capacity

Aperture Area

Recommending for family

Load Qty 20GP/40HQ

Dia.*L

( m2 )

(m3)

(sets)

JXNP-58-10

58*1800mm

10

100

0.93

2

77/184

JXNP-58-12

58*1800mm

12

120

1.11

2

64/153

JXNP-58-15

58*1800mm

15

150

1.39

3

52/123

JXNP-58-18

58*1800mm

18

180

1.67

4

43/102

JXNP-58-20

58*1800mm

20

200

1.86

5

39/92

JXNP-58-24

58*1800mm

24

240

2.23

6

32/77

JXNP-58-30

58*1800mm

30

300

2.79

7

26/61

JXNP-58-36

58*1800mm

36

360

3.34

8

21/51

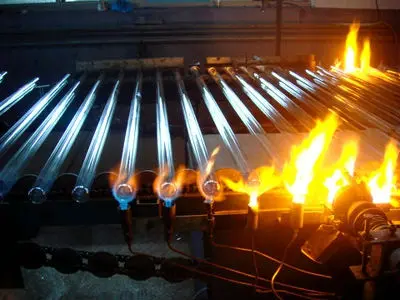

LUCKY - High absorptance  vacuum tubes producing line 1.jpg



LUCKY - Water tank warming machine.jpg

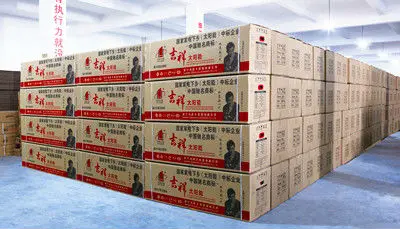

LUCKY - Warehouse.jpg
