Wholesale 24 mm heat pipe pressurized evacuated tube solar collector with 30 tubes

FOB Reference Price:Get Latest Price
US $150-360 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
5000 Set/Sets per Month
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split, Direct-Plug
Installation:
Freestanding, Wall Mounted, also Free
Housing Material:
AL-ALLOY
Certification:
CE, Solar Keymark,SRCC, CE, Solar Keymark, SRCC, CCC, ISO9001
Capacity:
100
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LUCKY SOLAR
Model Number:
JXSPC-10
Bracket Angle:
Adjustable and Available to both Slope Roof and Flat Roof
Usage:
Home bathing, washing, swimming pool, industrial project
Nums of tubes:
10/12/15/18/20/25/30/36
Description:
Pressurized heat pipe vacuum tube solar collector
Heat type:
evacuated tube 58*1800 mm
Warranty:
5 years
Manifold:
aluminum alloy
Packaging & Delivery
Packaging Details
carton package for container, wooden box for samples
Delivery Time
7-10 days


Description Of china manufacture solar water heater





Premium Solar Collector Specification



Three-target Vacuum Tube Performance and Specification:

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø58±0.7mm; Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm; Glass thickness 1.6±0.15mm

Tube dimension

58*1800mm

Absorption
coating
property

Coating material

CU/SS-ALN(H)/SS-ALN(L)/ALN

Sediment method

Three Target magnetron sputtering plating

Absorptivity

α =0.92~0.96 (AM1.5)

Emission ratio

Emission: ε=0.04~0.06(80°C±5°C)

Vacuum degree

P≤5.0X10-3(PA)

Stagnation temperature

(temperature inside of empty evacuated tubes)

260~300 °C

Average heat loss

ULT 0.4~0.6 W/(m2 *°C)

Hail resistance

Ø25 mm





24mm Premium Heat Pipe Performance and Specification:

Heat pipe material

Oxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm)

Condenser dimensions

Top: Ø24mm *65mm,Body: Ø8*0.6mm.length:1750± 10mm

Heat-transfer-fins

0.3mm/0.0098’’ thick sets of Aluminum fins,1630mm

Starting speed

30s

Max. operation pressure

6bar

Max. testing pressure

12bar

Stagnation temperature

236°C





Bracket Performance and Specification:

Bracket

2.0mm thickness aluminum alloy bracket.

Vertical installation angle

Flat & pitched roof





Solar Water Tank Specification





Working Station with Controller

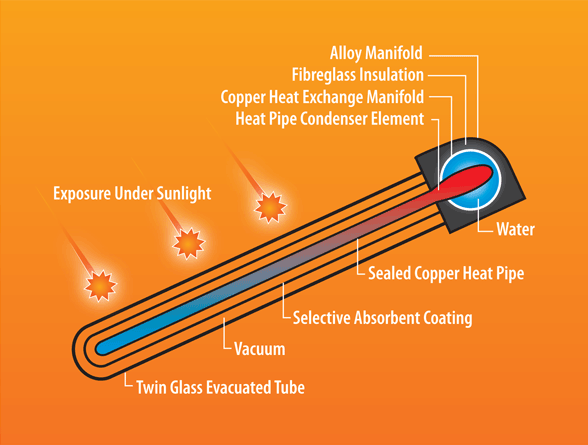

Sketch Map Of Product








Our Service For YOU

Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for you to choose.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question,please contact with us freely by E-mail or Telephone.

Company Introduction



Haining Jixiang Solar Energy Co.,Ltd(Lucky) is a new high-tech company

 specializing in developing and utilizing of solar energy, Locating in Haining city,

 we are specialized in the research and application of solar energy and manufacture

 of all kinds of solar water heaters, eco-friendly oven and integrative ceiling and PVC panels ect.



Our ability : 5000pcs/month.



China factory supplier. Take sample order, min order 1pcs.




Why Choose Us?

A.Our Advantages:

1.Complete International Certificates: CE, Solar KEYMARK, TUV, SRCC, SGS, ISO, FSEC, ONNCCE, GMC, ALIBABA etc.

2.The first grade product quality: All passed EN12975(12976)-1,2, the heat efficiency of

 Solar Keymark certificate is 0.73209 in the top of China. Very rarely factory can pass

 EN12976 in China.

3.We are full export experience 10 years, over 60 countries in the world.

4.Own the best group of R&D, the best quality and the best service for customers.

5.Lucky Solar is a well-known & reputable brand in China, registered 18 countries brand trademark

6.OEM/ODM is available.
