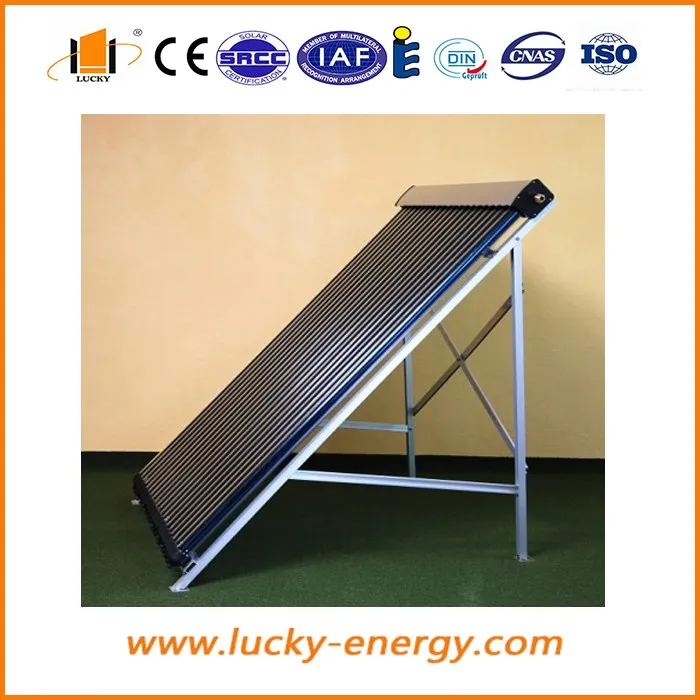

solar keymark manifold heat pipe pressured solar collector for project

FOB Reference Price:Get Latest Price
US $120-250 / Set | 2 Set/Sets (Min. Order)
Supply Ability:
10000 Set/Sets per Month
Port:
Shanghai/Ningbo
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Batch / ICS (Passive)
Connection Type:
Split
Installation:
Wall Mounted
Housing Material:
aluminum alloy
Certification:
CE, Solar Keymark,ISO,SRCC
Capacity:
300
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OEM
Model Number:
JXSPC-20
Color:
customized
Application:
industry/hotel project
Service:
OEM
Size:
customized
Vacuum tube:
58mm/1800mm
Frame:
Alumimum Alloy
Warranty:
10 years
Component:
work station/expansion tank
work life:
25 years
Max pressure:
0.6mpa
Packaging & Delivery
Packaging Details
Standard carton for vacuum tube solar water heater.
Delivery Time
10-15days
Product Details

Seperated Pressure Bearing Collector

1.Adopts red copper channel,with great performacnce of heat exchange.
2.Utilize copper heat pipes containing special medium liquid with low boiling point.
3.Work well in all climates, can be functioning well even in ambient temperature of minus 30 degrees celsius.
4.Each heat pipe tube works independently and efficiently.
5.No water flows inside the vacuum tube,no risk of freezing.withstand high water pressure of up to 1.2 Mpa.

Manifold
Channel of manifold
red copper
Outer manifold
aluminium alloy
Max pressure
0.6Mpa
Insulation layer
Rock wool
Installation size of water pipe
PT 3/4
Heat pipe evacuated vacuum tubes
Tube material
High borocillicate 3.3 glass
Vacuum tube size
58mm*1800mm
Absorptive coating structure
Cu/SS-ALN(H)/SS-ALN(L)/ALN
Specifice absorption
≥0.96(AM1.5)
Vacuum tightness
5.0×10¯³ Pa
Idle sunning property parameters
260-300 m².C/KW
Resistant Hail
≤25mm
Useful life
25 years
BRACKET
Frame
1.5mm stronger galvanized steel /2.0mm aluminum alloy
Bracket angle
optional, pitched roof, flat roof optional.
Solar Water Tank Specification
Material of out tank
High quality color coated steel
Material of inner tank
SUS 304-2B stainless steel
Tank insulating layer
55mm high-density polyurethane foamed
Copper coil connector size(inch)
1/2 inch NPT
Working pressure(Mpa)
0.6Mpa
Temp Control
30-95℃
Heat exchanger material
copper coil
Components
Electric heater,Magnesium rod,T/P valve,pressure reducing valve
Size
copper coil: male G 1/2,15 meters per copper coil/PT valve, T/P value:G3/4
PT valve, T/P value:G3/4,Eletric heating stick ,magnisium stick included .
Company and Service

Haining Jixiang Solar Energy Co.,Ltd is a new high-tech company specializing in developing and utilizing of solar energy.Locating in Haining city, we are specialized in solar water heaters.Our products include heat pipe collectors,split pressurized system,compact thermosyphon systems,solar heating project.

We are an ISO9001 and SGS certified company,we have acquired the EN12975,solar key-mark and Chinese well-known trademark,CCC and CE,and we are applying for the certificate of SRCC.

OEM Service

We can maufacture the products as the design and requirement of the customer,like logo printing,marks,packing service.

Reasonable Price

As the factory,we can provide a low price.And we also can give discount based on the quantity of the order.

After-sale service

Quality guarantee , 5 years for complete system, 15 years for vacuum tubes . 1 year for components.We can provide a solution based on the fact of the production.

Process and Packing
Exhibition image
FAQ
Q:Quality after-sale service?
A:5 years for complete system, 15 years for vacuum tubes,1 year for components.
Q:Minimum Order Quantity?
A:As the sample,1 set for each type is available.
Q: Payment term and methods?
A:30% deposit & 70% balance at sight of B/L copy and At sight L/C and Time letter of credit is accepted.
Q:OEM service is accepted?
A:We can print your logo on the water tank and make a packing as your requirement.
Q: Accept Alibaba trade assurance order?
A:Yes,Alibaba will guarantee your payment, product quality and delivery in this way.
