Quick Details

  • Type: Evacuated Tube
  • Pressure: Unpressurized
  • Circulation Type: Direct / Open Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: galavnized steel
  • Certification: CE, Solar Keymark,ISO,SRCC
  • Capacity: 150
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Lucky
  • Model Number: JXNPS -58/1800
  • Color: customized
  • Inner tank: SUS 304 stainless steel
  • Application: bathroom,home use
  • Service: OEM
  • Size: customized
  • Vacuum tube: 58mm/1800mm
  • Frame: stainless steel
  • Warranty: 10 Years
  • Component: electric heating element/magnesium bar
  • tank size: 460/360mm

Packaging & Delivery

Packaging Details Standard carton for vacuum tube solar water heater.
Delivery Time 10-15days
Product Details

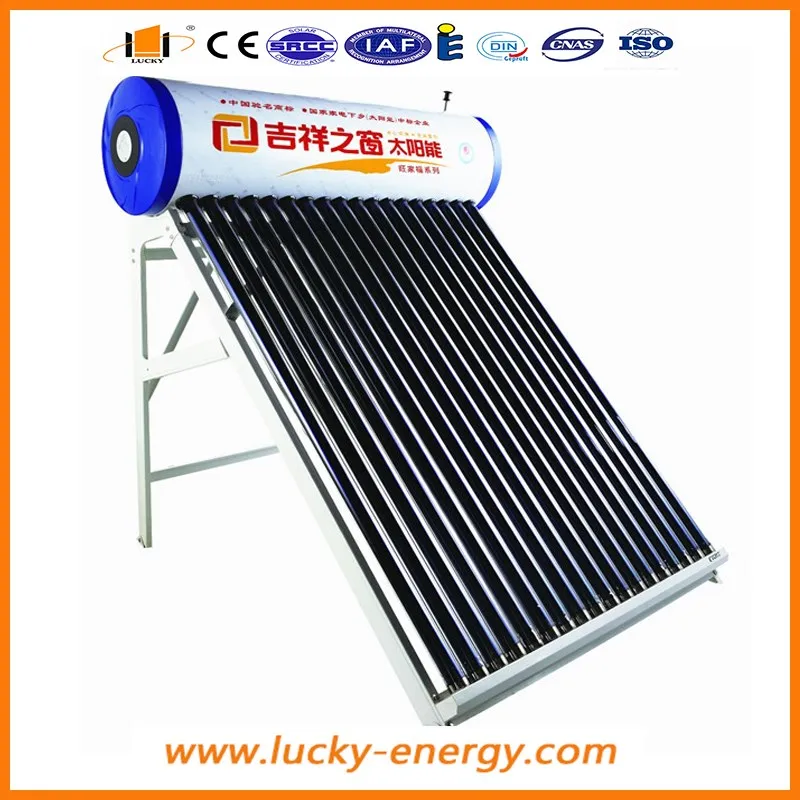

Non-pressurized solar water heater

The design of this type uses the all-glass evacuated solar collector tubes as the heat-absorb element.The high vacuum degree of the clearance between the outer and inner tube can reduce the heat emission which caused by convection and conduction to a very low level.All -glass evacuated tube transfers sun energy into heat energy by the high absorption rate and low emittance rate of layer films.Depand on the different density between  the hot water and the cold water,a cycle can be created in the tube which hot water ascending and cold water descending status.Keeping narural circulation like this,the water in the tank will be heated

Material of out tank
nacre white armor plate
Material of inner tank
Food grade SUS304-2B Stainless Steel
Tank insulating layer
50 mm high-density polyurethane foamed
Inlet and outlet hole
Male G 1/2 or 3/4
Structure of tank

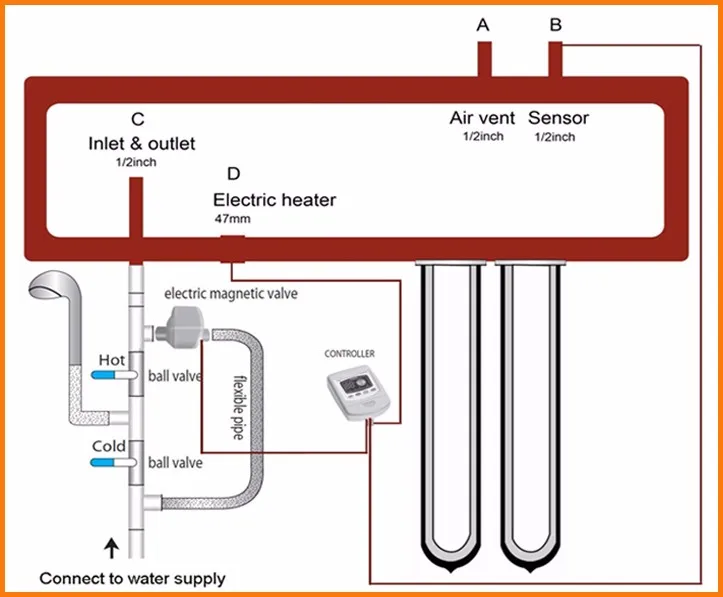

5 holes for : air vent, overflow, water inlet and outlet, electric element. Magnesium. Or per request.

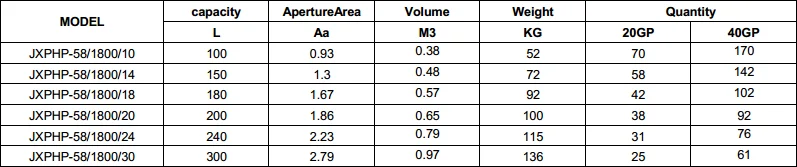

Tank size
Absorptive coating Structure
Vacuum tightness
5.0×10¯³ Pa
Average heat loss coefficient
Resistant Hail
Useful life
25 years
Bracket material
Stronger galvanized steel bracket
Bracket angle
22,38,45 optional, pitched roof, flat roof optional.

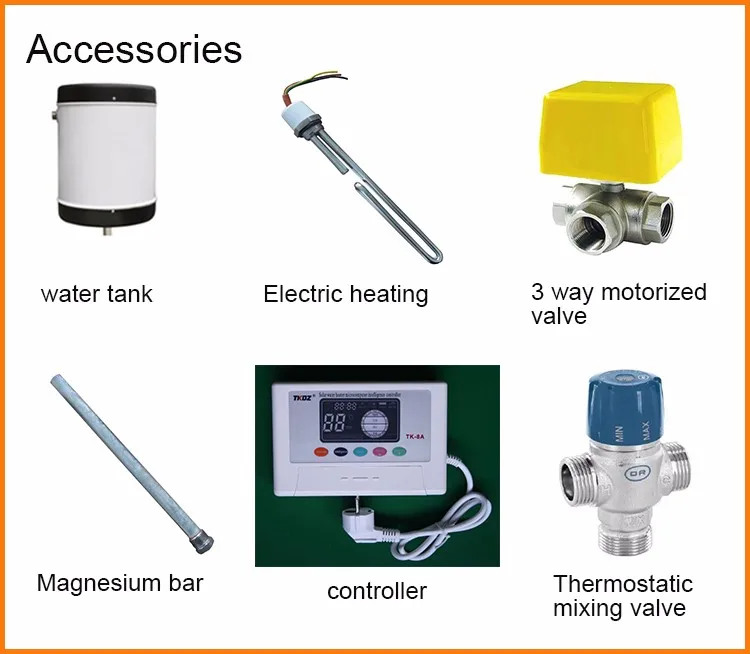

Magnesium bar
Back up system.(Electric heater )
1.5kw/2.0kw/3.0kw optional

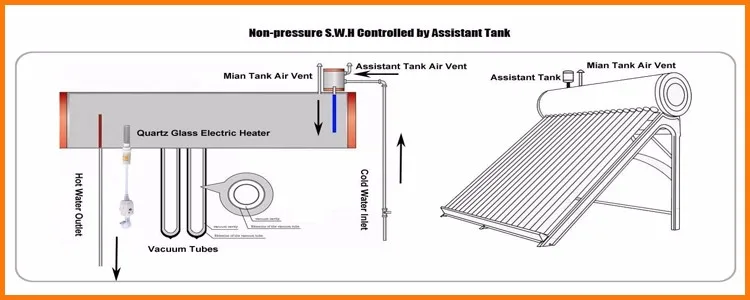

Assistant tanks
5L/8L/10L/24L with galvanized steel type optional
Company and Service

Haining Jixiang Solar Energy Co.,Ltd is a new high-tech company specializing in developing and utilizing of solar energy.Locating in Haining city, we are specialized in solar water heaters.Our products include heat pipe collectors,split pressurized system,compact thermosyphon systems,solar heating project.

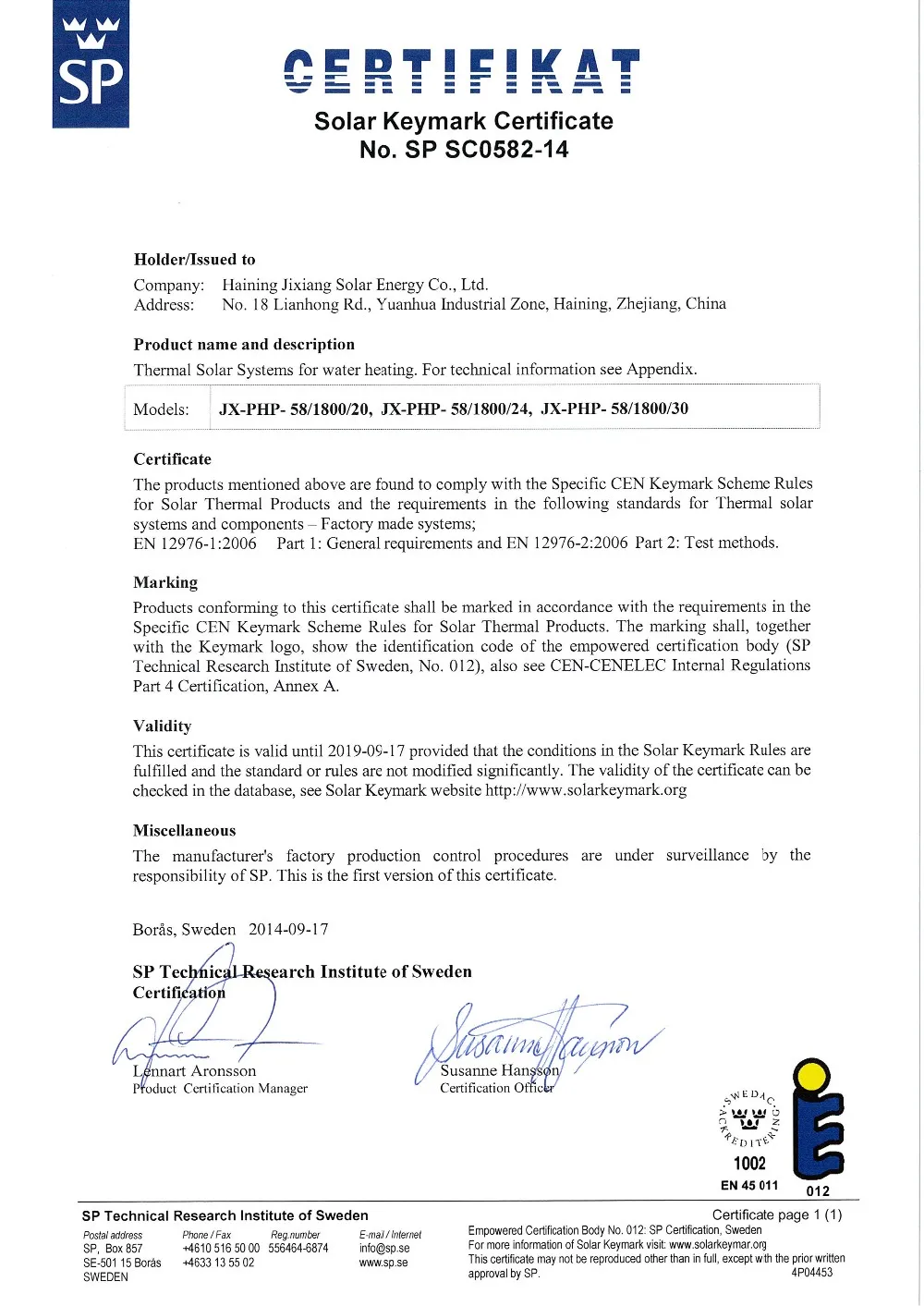

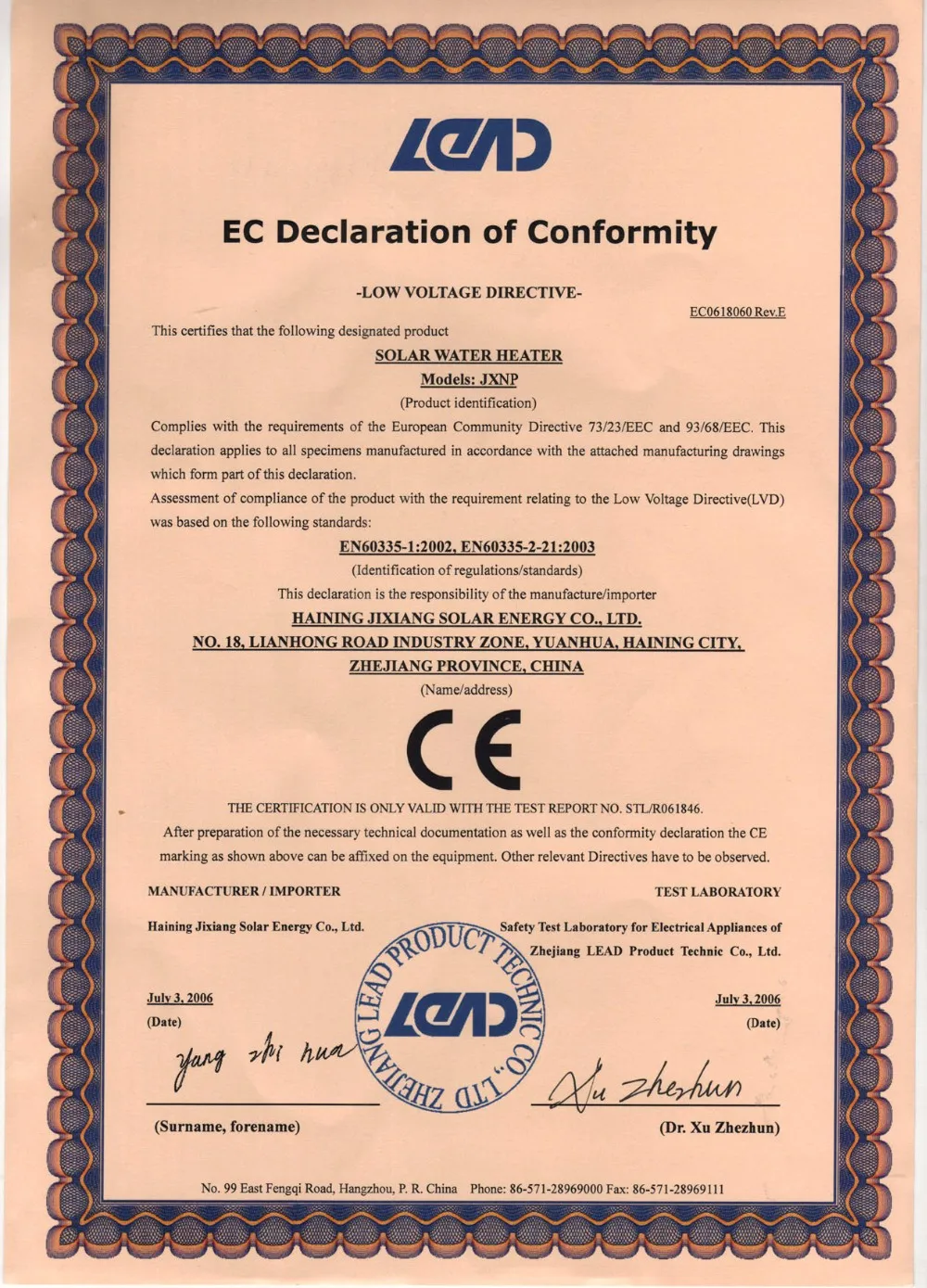

We are an ISO9001 and SGS certified company,we have acquired the EN12975,solar key-mark and Chinese well-known trademark,CCC and CE,and we are applying for the certificate of SRCC.

OEM Service

We can maufacture the products as the design and requirement of the customer,like logo printing,marks,packing service.

Reasonable Price

As the factory,we can provide a low price.And we also can give discount based on the quantity of the order.

After-sale service

Quality guarantee , 5 years for complete system, 15 years for vacuum tubes . 1 year for components.We can provide a solution based on the fact of the production.

Process and Packing
Exhibition image
Q:Quality  after-sale service?
A:5 years for complete system, 15 years for vacuum tubes,1 year for components.
Q:Minimum Order Quantity?
A:As the sample,1 set for each type is available.
Q: Payment term and methods?
A:30% deposit & 70% balance at sight of B/L copy and At sight  L/C  and Time letter of credit is accepted.
Q:OEM service is accepted?
A:We can print your logo on the water tank and make a packing as your requirement.
Q: Accept Alibaba trade assurance order?
A:Yes,Alibaba will guarantee your payment, product quality and delivery in this way.
