Quick Details

  • Type: Evacuated Tube
  • Pressure: Pressurized
  • Circulation Type: Indirect / Closed Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: Stainless Steel
  • Certification: CE, Solar Keymark,ISO,SRCC
  • Capacity: 200
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Lucky
  • Model Number: JXNPS -58/1800
  • Color: customized
  • Inner tank: stainless steel
  • Application: bathroom,home use
  • Service: OEM
  • Size: customized
  • Vacuum tube: 58mm/1800mm
  • Frame: Alumimum Alloy
  • Warranty: 10 years
  • Max pressure: 12 bar
  • Outer tank: Galvanized Steel

Packaging & Delivery

Packaging Details: Standard carton for vacuum tube solar water heater.
Delivery Detail: 10-15days
Product Details

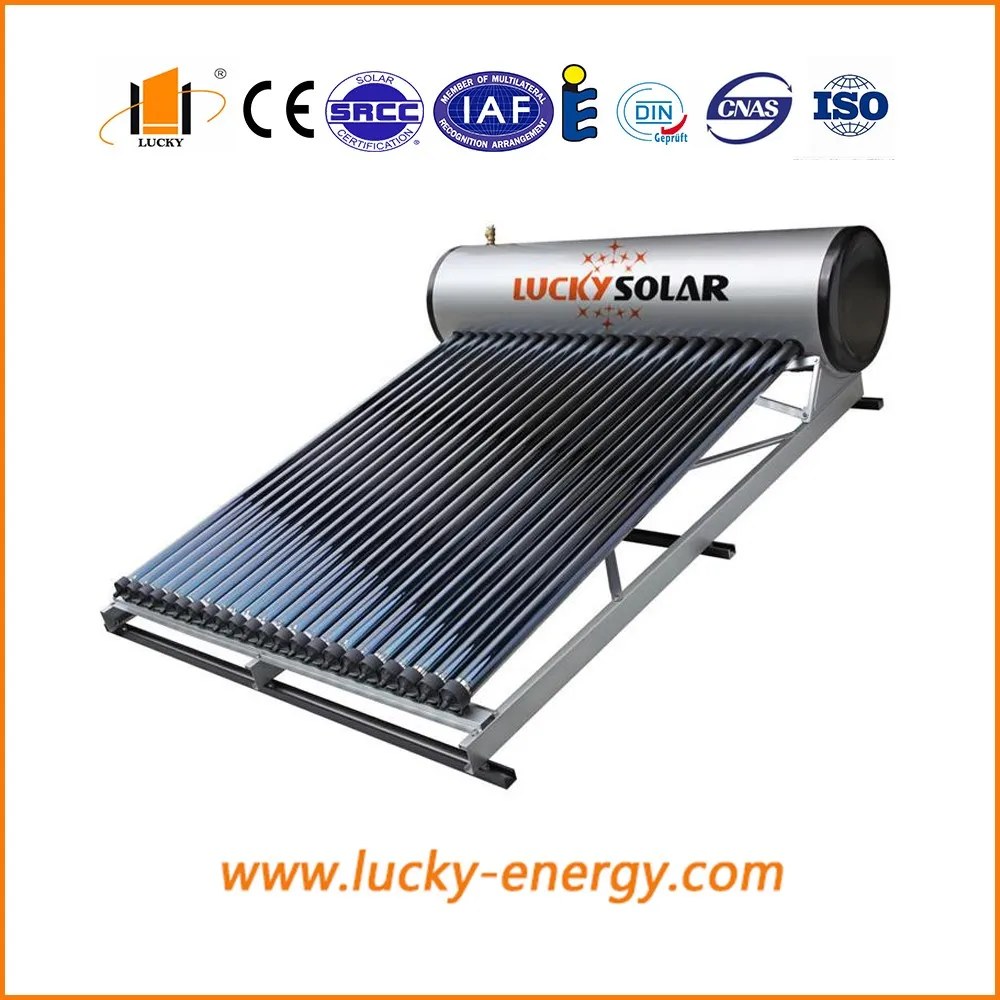

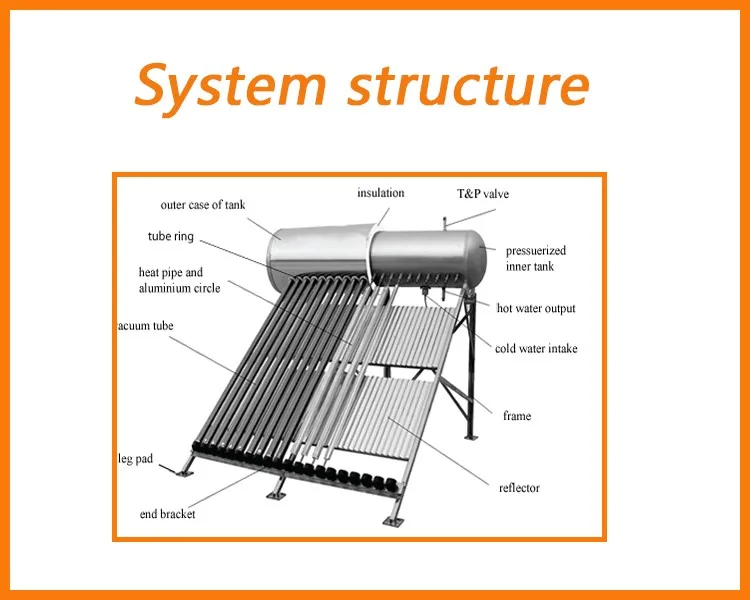

Integrated pressurized solar water power system

The inner tank adopts the 1.2mm imported SUS304 stainless steel and automatic welding tech which decrease the corrosion.Inlet and outlet use the argon welding tech against the 0.6Mpa pressure.Heat tube conducts the heate energy in the single direction and has some advantages of quick operation, high heat efficiency and anti-corrosion. It has advantages of no water in tube, no filthy.no brokentube ,anti-freeze unlimited time of the inputting water and pressure operation.Insulation adopts the polyurethane which hase good insulation efficiency.The frame adopts the stainless steel,which is strong and against the corrosion.

Water Storage Tank
Material of out tank
PVDF additonal layer coated armor plate
Material of inner tank
SUS 304 Stainless Steel: 1.2mm
Tank insulating layer
55 mm high-density polyurethane foamed
Inlet and outlet hole
Male G 3/4
Working pressure
7 bar

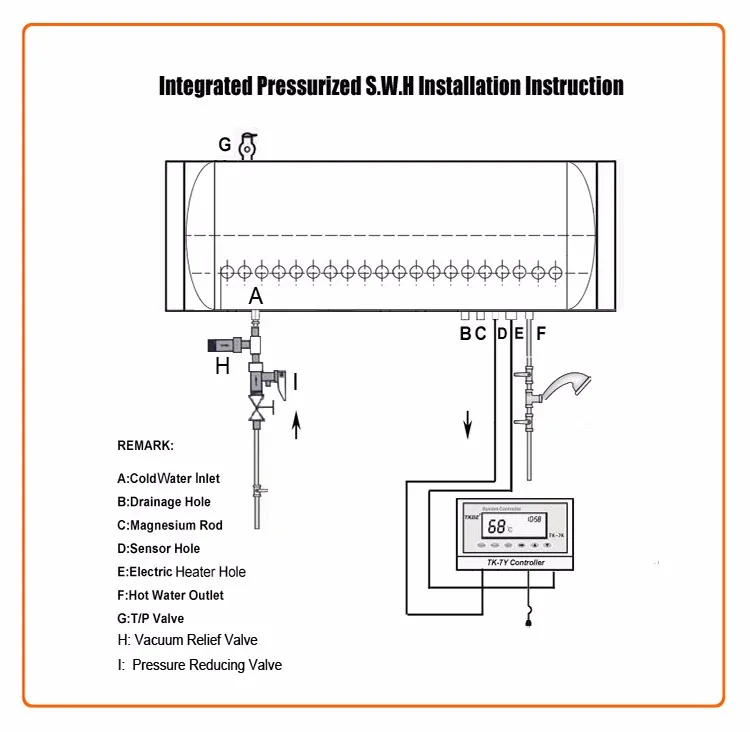

Structure of tank
7 holes for : TP valve hole, hot water inlet,cold water outlet, electric element,Magnesium ,senser hole and Limber hole Or per request.
Tank size
480/370mm

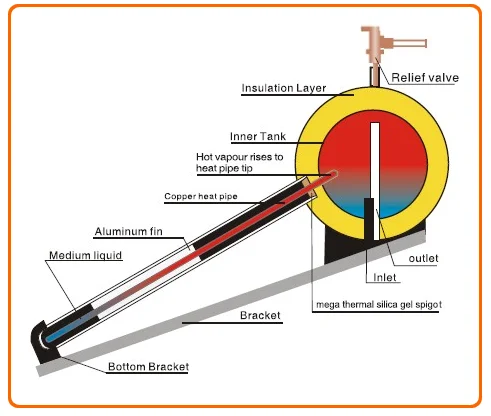

Heat Pipe Evacuated Vacuum Tube
Tube material
High borocillicate 3.3 glass
Absorptive coating Structure
Cu/SS-ALN(H)/SS-ALN(L)/ALN
Pipe size
58mm*1800mm
Vacuum tightness
5.0×10¯³ Pa
Average heat loss coefficient
ULT=0.4~0.6W/(M2.0C)
Resistant Hail
≤25mm
Useful life
25 years
Bracket
Bracket material
1.5mm stronger galvanized steel
Bracket angle
32 optional, pitched roof, flat roof optional.
Reflecter
0.4mm thickness aluminum (optional)
Fastening pieces
Made of hot dip galvanizing steel.
ACCESSORY
Accessory
include T/P valve,electric copper heater(1.5kw/3.0kW), Relife check valve,magnesiarods
Our Company

Haining Jixiang Solar Energy Co.,Ltd is a new high-tech company specializing in developing and utilizing of solar energy.Locating in Haining city, we are specialized in solar water heaters.Our products include heat pipe collectors,split pressurized system,compact thermosyphon systems,solar heating project.

We are an ISO9001 and SGS certified company,we have acquired the EN12975,solar key-mark and Chinese well-known trademark,CCC and CE,and we are applying for the certificate of SRCC.

Our Service

OEM Service

We can maufacture the products as the design and requirement of the customer,like logo printing,marks,packing service.

Reasonable Price

As the factory,we can provide a low price.And we also can give discount based on the quantity of the order.

After-sale service

Quality guarantee , 5 years for complete system, 15 years for vacuum tubes . 1 year for components.We can provide a solution based on the fact of the production.

Process and Packing
