Stainless Steel Sus304 Solar Water Heater, High Quality Stainless Steel Sus304 Frame,Termos Solares Sus304 Frame And Outer Tank

FOB Reference Price:Get Latest Price
US $200-600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
free standing/ wall mouted
Housing Material:
painted steel/stainless steel/galvanized steel
Certification:
CE
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OEM
Model Number:
JXSC series
Application:
Home use/Agriculture use/Industial use
Vacuum tube:
Three target tube,ALN/AIN-SS/CU coating
Frame:
Stainless steel,Alumimum alloy,Galvanized steel,and so on
Collector:
Glass vacuum tube
Insulation:
55mm polyurethane layer
Inner tank material:
SUS304-2B imported food grade stainless steel
solar water heater:
evacuated tube solar water heater
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
Shanghai

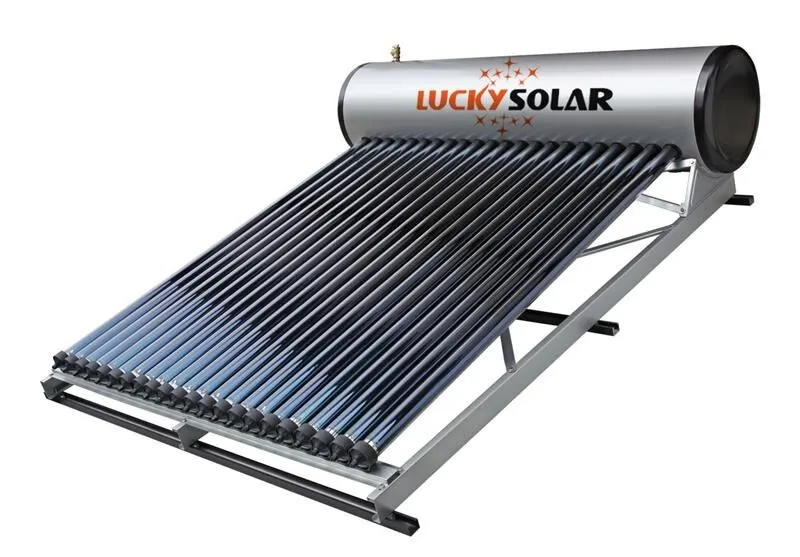

Compact pressurized solar water heater

A. we do everything ourselves, Food Grade Quality 304-2B 1.5mm thickness pressurized water tank (316L or enamel tank is optional)

B. Antifreeze Heat Pipe Solar Collector passed testing Solar KEYMARK certificate, 0.73209 conversion factor, Test pressure: 12bar/1.2MPa, the efficiency is highest in China

C. The 3rd generation three target vacuum tube, Resistance Hail up (mm): 30








 FEATURES
1. No water in vacuum tubes, each vacuum tube works individually, so the whole system could still work even several tubes are broken.
2. Even the environment’s temperature is extremely low, this system could still work well.
3. Heat energy transferred by vacuum tube with heat pipe rapidly.
4. Solar water heater could fit with many kinds of roof style because of the rational designed bracket.
5. Hot water with high pressure will bring you a comfortable shower.

WORKING PRINCIPLE









Water tank is closed to ensure enough pressure. Solar vacuum tubes absorb heat energy and transfer to copper heat pipe by aluminum fin, then heat pipe will bring heat energy to cold water in the tank to heat the water.

pressurized solarQQ20160506132448QQ20160303104619



 DSC03413

1.jpg2.jpgQQ20170724115559.jpg4.jpgJIXIANG -- stainless steel heat pipe SWHQQ20160303104619

SPECIFICATION DATA

COMPACT PRESSURIZED SOLAR WATER HEATER



Item No.

JXIP-10

JXIP-15

JXIP-20

JXIP-25

JXIP-30

Solar tube

Tri-elements vacuum tube with heat pipe, Φ58X1800mm

Inner tank

Stainless Steel SUS304/2B, 1.2mm thickness

Outer tank

Galvanized Steel, 0.41mm thickness

Insulation

Polyurethane foam, density≥ 40kgs/m3, thickness ≥ 50mm

Bracket

Galvanized steel, thickness ≥1.6mm

Max. pressure

1.0MPa / 10 Bar

Optional Type

Color steel / Stainless steel / PVDF / Flat

Accessories

Electrical heater

Volume

100L

150L

200L

250L

300L
