Quick Details

  • Type: Evacuated Tube
  • Pressure: Unpressurized
  • Circulation Type: Indirect / Closed Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: painted steel/stainless steel/galvanized steel
  • Certification: CE, Solar keymark
  • Capacity: 300
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: OEM
  • Model Number: JXSC series
  • Inner tank: SUS304/ 2B food grade class
  • Out tank: galavnized steel/sus 201/304 stainless steel
  • bracket: aluminum alloy/galavnized steel
  • insulation layer: polyurethane foam
  • Warranty: 5 years
  • Application: Residential
  • Color: customized
  • copper coil: 12 mm /14 mm
  • Accessory: feeder tank/electric heater
  • heat type: pre-heated evacuated tube

Packaging & Delivery

Packaging Details FCL:standard export carton
LCL:wooden case
Delivery Time 10 to 15 working days upon the receipt deposit
Product Description

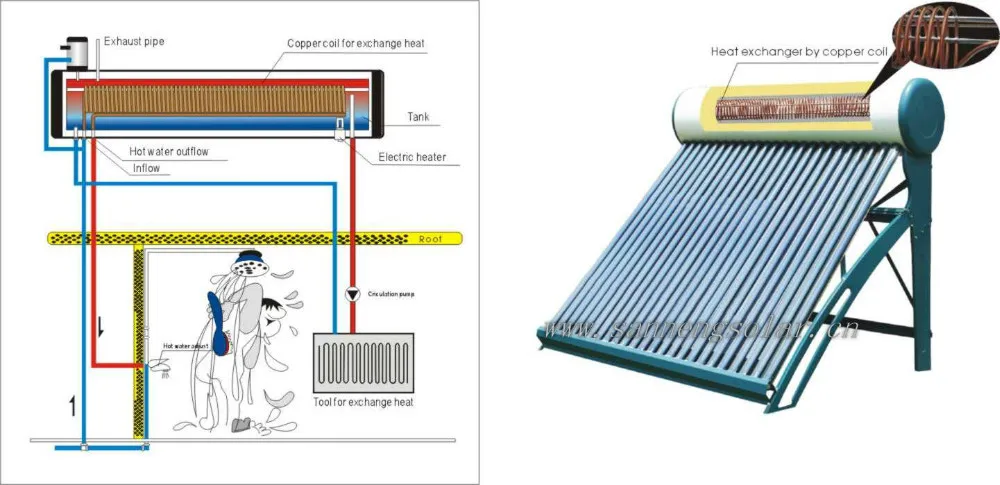

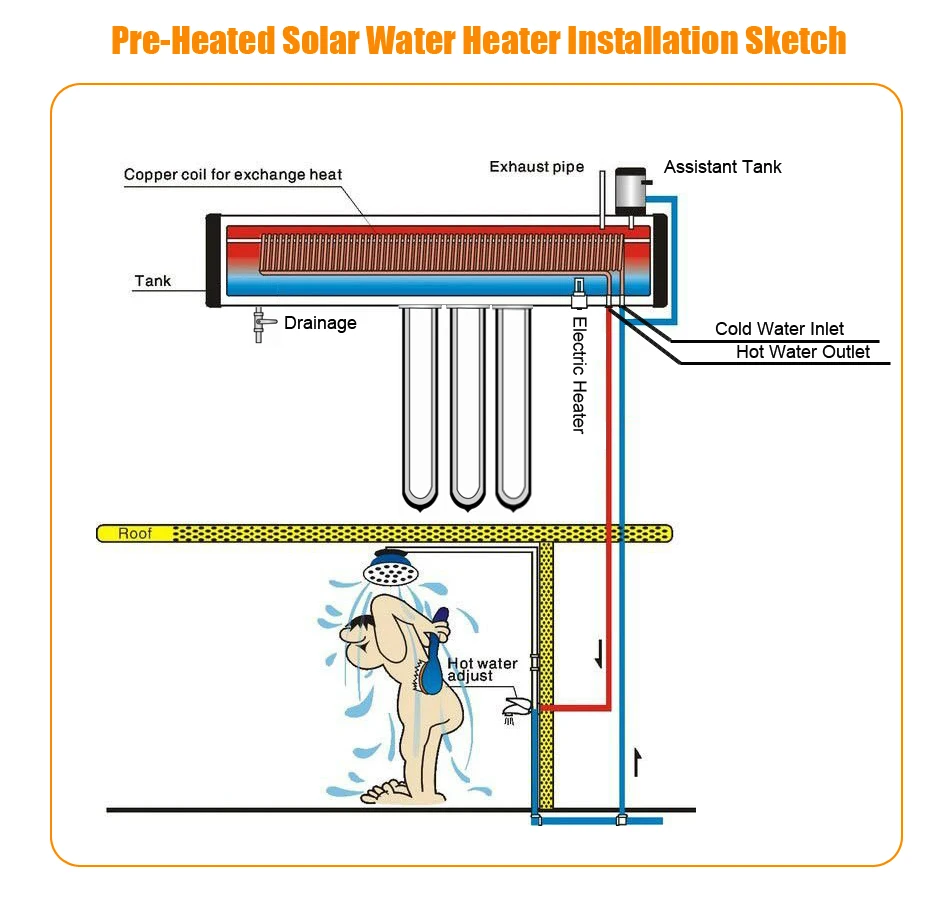

The design of this type uses the all-glass evacuated solar collector tubes as the heat absorb element. The high vacuum de  gree of the clearance between the outer and inner tube can reduce the heat emission which caused by convection and conduction to a very low level. All-glass evacuated tube transfers sun energy into heat energy by high absorption rate and low emittance rate of layer films. Depend on the different density between the hot water and the cold water, a cycle created in the tube which hot water ascending and cold water descending status. Keeping natural circulation like this, the water in the tank will be heated.



PRODUCT STRUCTURE

Vacuum tube

Support frame

Water tank











why chhoose us?

1.Complete International Certificates: CE, Solar KEYMARK, TUV, SRCC, SGS, ISO, FSEC, ONNCCE, GMC, ALIBABA etc.

2.The first grade product quality: All passed EN12975(12976)-1,2, the heat efficiency of Solar Keymark certificate is 0.73209 in the top of China. Very rarely factory can pass EN12976 in China.

3.We are full export experience 10 years, over 60 countries in the world.

4.Own the best group of R&D, the best quality and the best service for customers.

5.Lucky Solar is a well-known & reputable brand in China, registered 18 countries brand trademark

6.OEM/ODM is available.




Company introduction


     Haining Jixiang Solar Energy Co., Ltd. (Lucky) is a new high-tech company specialized in the utilization of solar energy. Located in Haining City, our company has high-quality technique staff. With strong integration capability and global resources, our company is moving forward to establish an international brand.


    Our Lucky series water heaters include Lucky Sanbao water heaters, Lucky Ruyi water heaters, Lucky Fuyun water heaters, Lucky Hexie water heaters, and Lucky Haoyun water heaters. These series products are conducted with serious quality control measures. Our company was awarded the ISO9001 certificate for our management and products, and our products have CCC certificate and CE certificate. The brand of "Window of Lucky" is listed as "Recommended Brand" of CCTV. Besides, the series products have also been regarded as quality safe products. Due to Lucky's good image and high quality, our products are popular in Spain, Italy and many other European countries.
