Quick Details

  • Type: Evacuated Tube, Evacuated Tube
  • Pressure: Pressurized, Pressurized
  • Circulation Type: Direct / Open Loop (Active), Direct / Close Loop (Active)
  • Heating System: Thermosyphon (Passive), Thermosyphon (Passive)
  • Connection Type: Direct-Plug, Direct-Plug
  • Installation: Freestanding, Free standing
  • Housing Material: Aluminium alloy, Stainless Steel
  • Certification: CE, SRCC certification, SOLAR KEYMARK certification
  • Capacity: 200
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: LUCKY, LUCKY
  • Model Number: JXSC series
  • Certificates: SOLAR KEY MARK,SRCC
  • Manifold: Aluminium alloy

Packaging & Delivery

Packaging Details Best efficiency collector Packing:
1)Standard export packing for full container quantity
2)Special packing for sample orders
Delivery Time 7-10 days

Company Information

 Haining Jixiang Solar Energy Co.,Ltd(Lucky) is a new high-tech company specializing in developing and utilizing of solar energy, Locating in Haining city, we are specialized in the research and application of solar energy and manufacture of all kinds of solar water heaters, eco-friendly oven and integrative ceiling and PVC panels ect.

Our ability : 5000pcs/month.

China factory supplier. Take sample order, min order 1pcs.

Our Services

1.We have 10 years solar export experience.

2.We offer different materials from different regions experience.

3.We accept the custom-made according to your specification.

4.We provide design drawing and installation training for our clients.

5.Our vacuum tubes are guaranteed for 10 years and the main body for 5 years.

6.1% of the total tubes are available as spare tube, even there are some tubes broken during the shipping, it doesn’t affect your sale, including accessories.

Why choose us?

1.Complete International Certificates: CE, Solar KEYMARK, TUV, SRCC, SGS, ISO, FSEC, ONNCCE, GMC, ALIBABA etc.

2.The first grade product quality: All passed EN12975(12976)-1,2, the heat efficiency of Solar Keymark certificate is 0.73209 in the top of China. Very rarely factory can pass EN12976 in China.

3.We are full export experience 10 years, over 60 countries in the world.

4.Own the best group of R&D, the best quality and the best service for customers.

5.Lucky Solar is a well-known & reputable brand in China, registered 18 countries brand trademark

6.OEM/ODM is available.

Product Description

Heat Pipe Solar Water Heaters



JXSPC-Serial Premium   solar panels   solar thermal pressurized panels

Characteristic.

1. Adopts red copper channel, with great performance of heat exchange.

2. Utilize copper heat pipes containing special medium liquid with low boiling point.

3. Work well in all climate, can be function well even in ambient temperature of minus 30 degree

Celsius.

4. Each heat pipe tube works independent and efficiently.

5. No water flows inside the vacuum tube, no risk of freezing.

6. Withstand high water pressure of up to 1.2 Mpa.

Material

1. Manifold: Aluminum alloy

2. Channel: Red copper

3. Heat pipe: Copper

4. Bracket: Aluminum alloy/ Galvanized steel/ Stainless steel

5. Insulation material: Rock wool

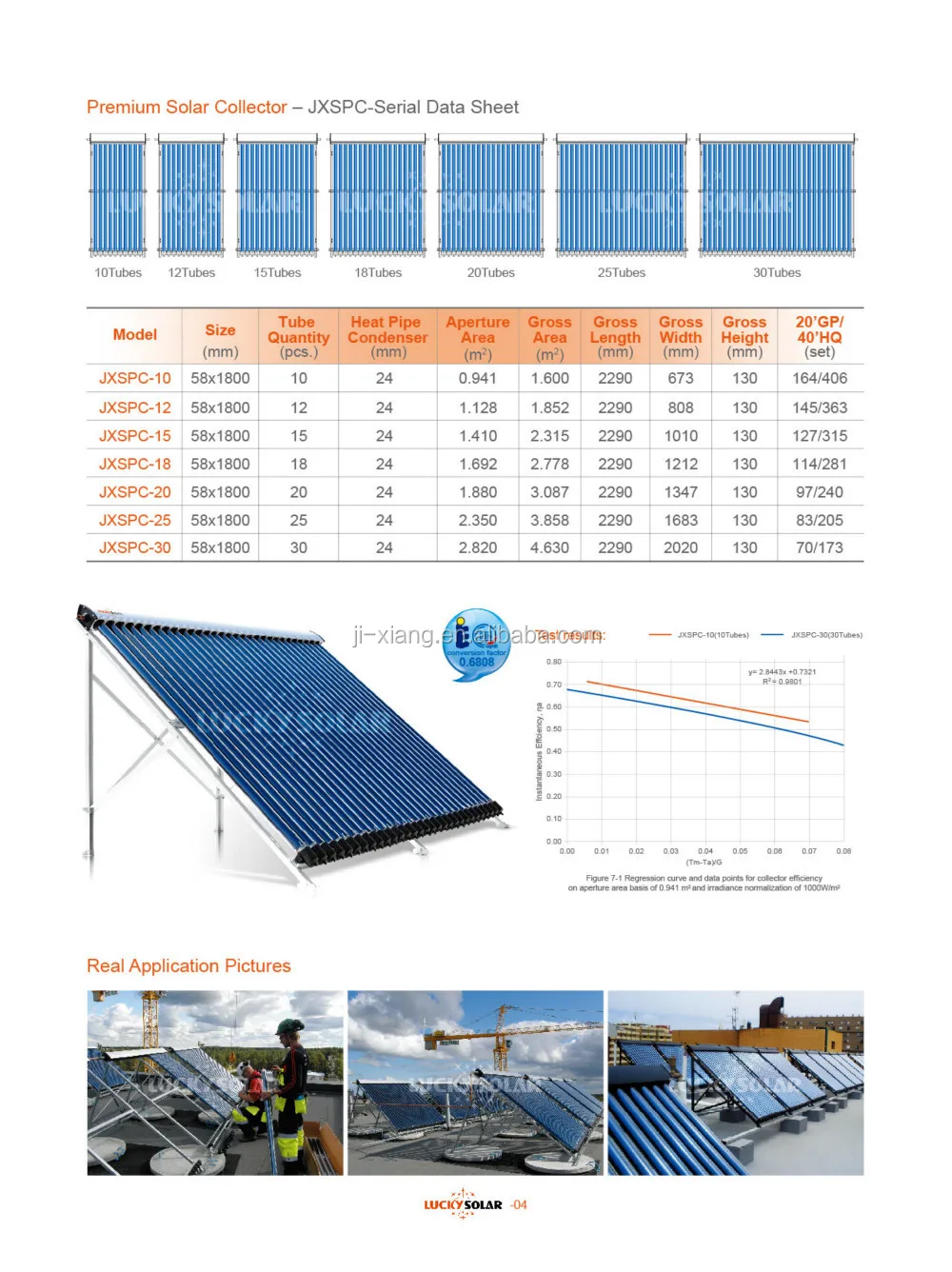

Premium Solar Collector Specification

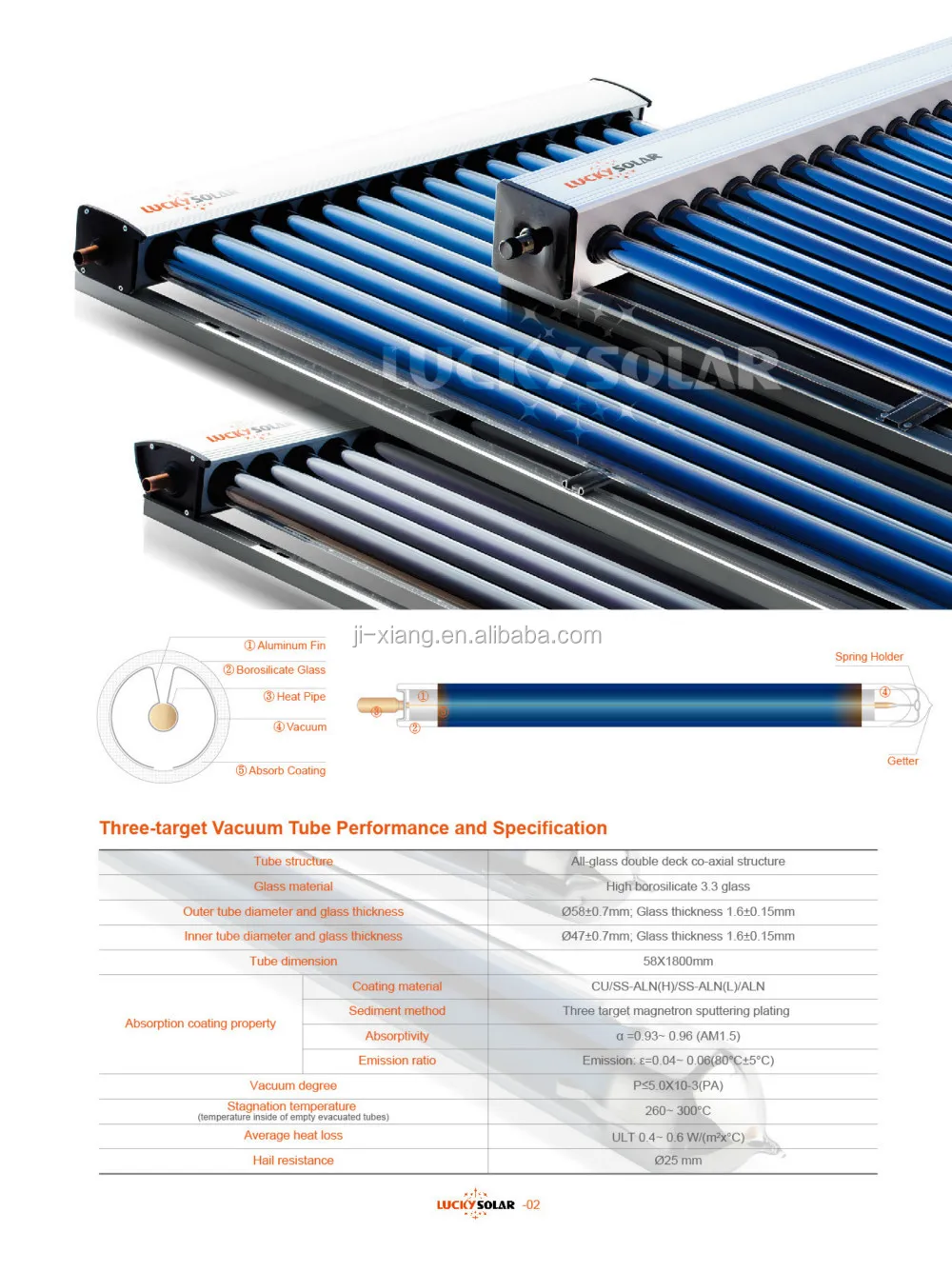

Three-target Vacuum Tube Performance and Specification:

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø58±0.7mm; Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm; Glass thickness 1.6±0.15mm

Tube dimension

58*1800mm

Absorption
coating
property

Coating material

CU/SS-ALN(H)/SS-ALN(L)/ALN

Sediment method

Three Target magnetron sputtering plating

Absorptivity

α =0.92~0.96 (AM1.5)

Emission ratio

Emission: ε=0.04~0.06(80°C±5°C)

Vacuum degree

P≤5.0X10-3(PA)

Stagnation temperature

(temperature inside of empty evacuated tubes)

260~300 °C

Average heat loss

ULT 0.4~0.6 W/(m2 *°C)

Hail resistance

Ø25 mm

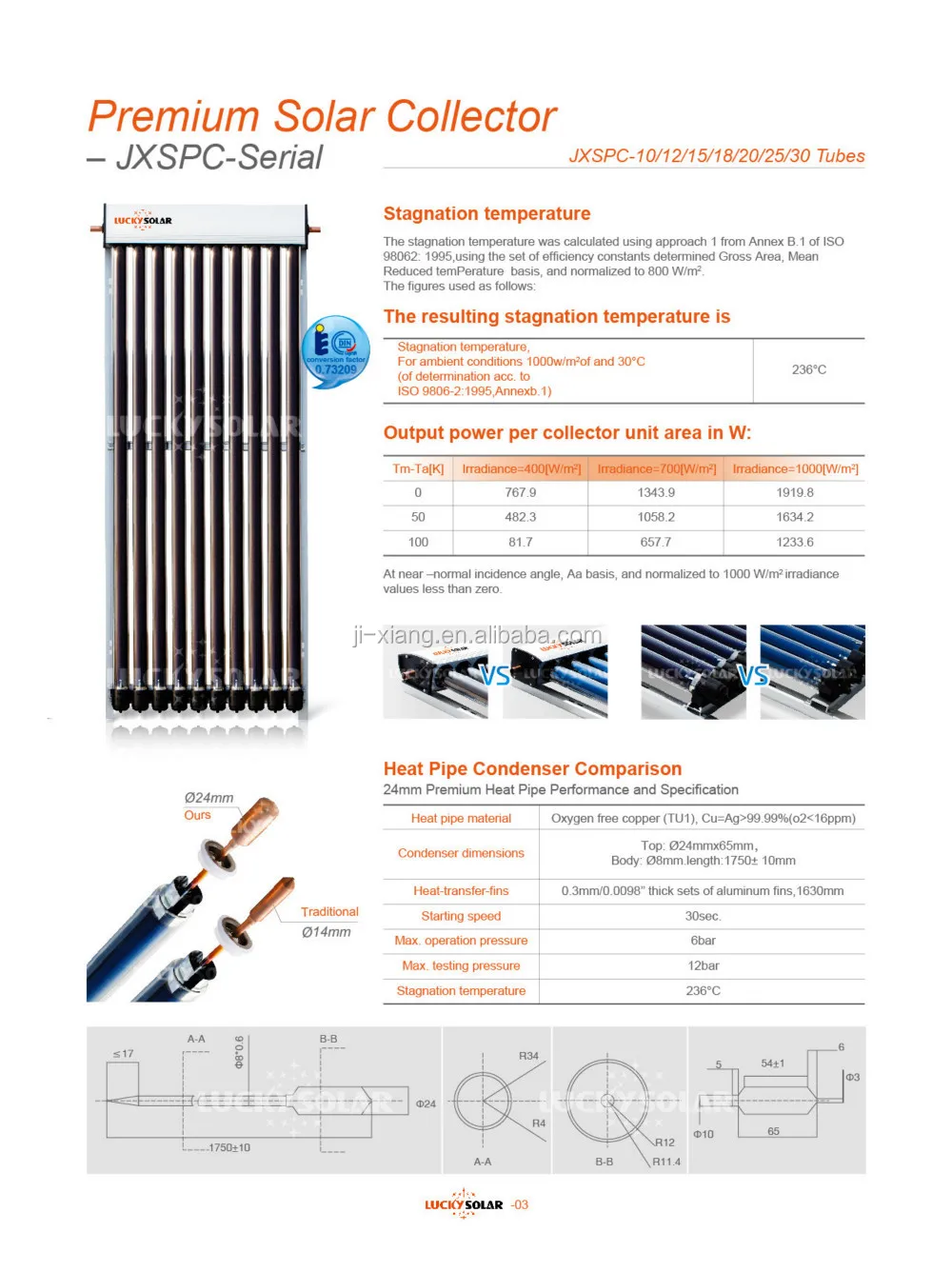

24mm Premium Heat Pipe Performance and Specification:

Heat pipe material

Oxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm)

Condenser dimensions

Top: Ø24mm *65mm,Body: Ø8*0.6mm.length:1750± 10mm

Heat-transfer-fins

0.3mm/0.0098’’ thick sets of Aluminum fins,1630mm

Starting speed

30s

Max. operation pressure

6bar

Max. testing pressure

12bar

Stagnation temperature

236°C

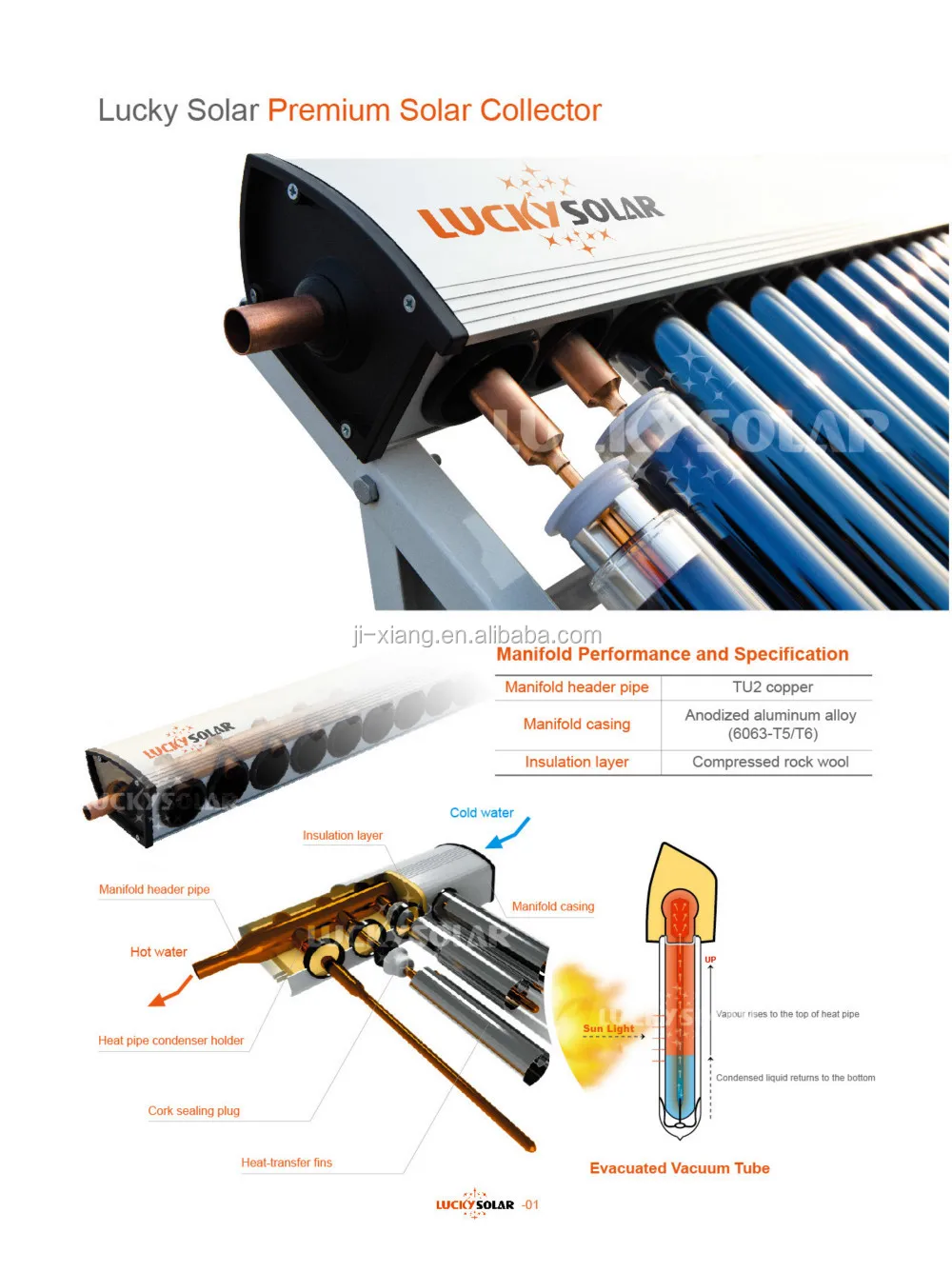

Manifold Performance and Specification:

Manifold header pipe

TU2 copper

Manifold casing

Anodized aluminum alloy (6063-T5/T6)

Insulation layer

Compressed rock wool.



Bracket Performance and Specification:

Bracket

2.0mm thickness aluminum alloy bracket.

Vertical installation angle

Flat & pitched roof

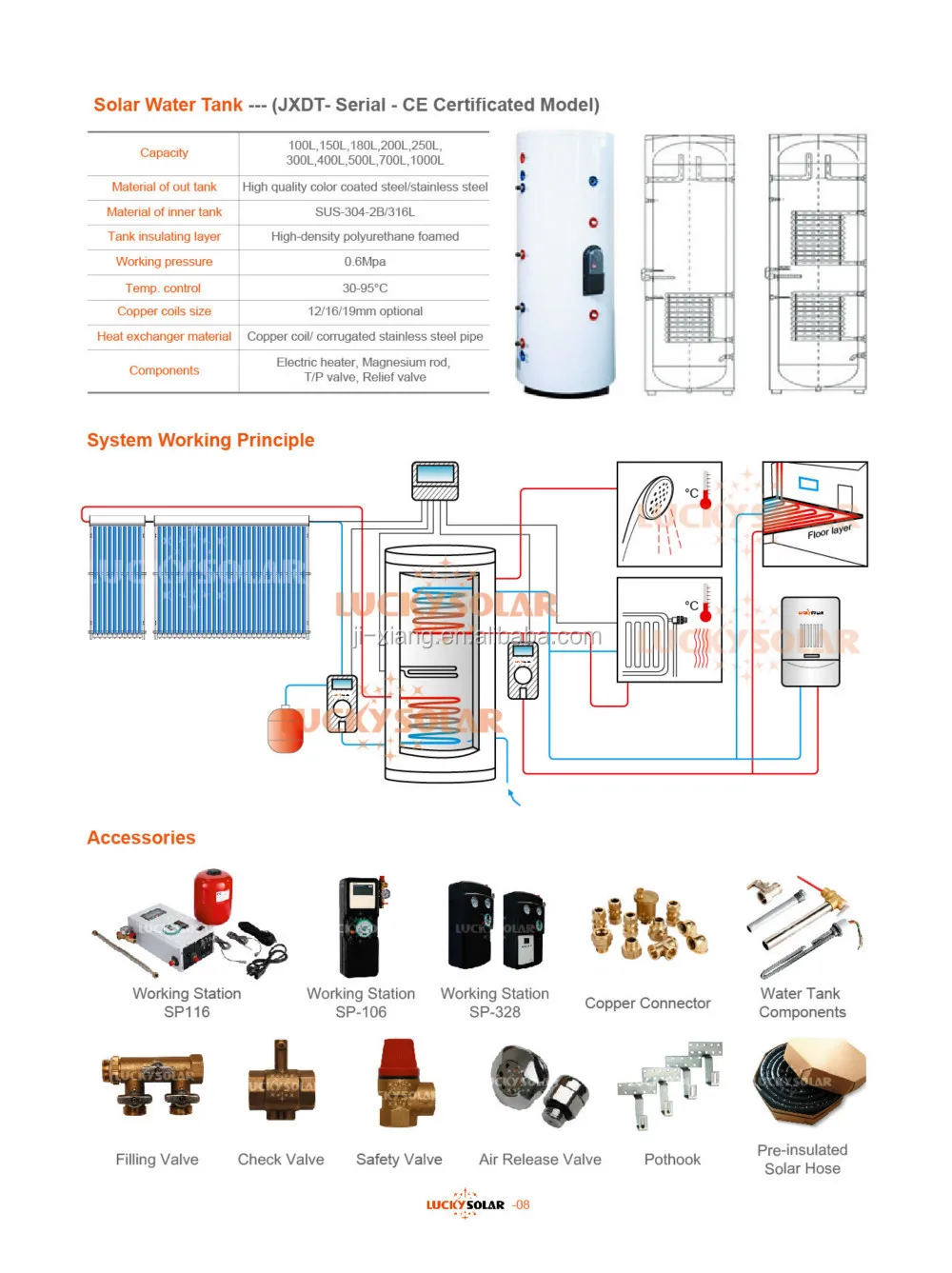

Solar Water Tank – 0/Single/Double Copper Coil

Tank Size

Tank Size

Insulation Layer

Inner Tank Thickness

Out Tank Thickness

Electric Heater Power

(mm)

(mm)

(mm)

(mm)

(mm)

(Watt)

JXDT-100L

470

50mm

1.0mm

0.5mm

1500W

JXDT-150L

470

50mm

1.2mm

0.5mm

1500W

JXDT-200L

550

50mm

1.5mm

0.5mm

1500W

JXDT-250L

580

50mm

1.5mm

0.5mm

1500W

JXDT-300L

580

50mm

1.5mm

0.5mm

1500W

JXDT-400L

700

50mm

2.0mm

0.5mm

2000W

JXDT-500L

700

60mm

2.0mm

0.5mm

3000W

JXDT-700L

1000

100mm

2.5mm

0.5mm

6000W

JXDT-1000L

1000

100mm

2.5mm

0.5mm

6000W

 Specification

Material of out tank

High quality color coated steel

Material of inner tank

SUS 304-2B stainless steel.

Tank insulating layer

with 45kg/m³ high-density polyurethane foamed

Out/inlet connection size(inch)

3/4inch, NPT

Copper coil connector size(inch)

1/2 inch NPT

Working pressure(Mpa)

0.6

Temp. Control(℃)

30-95C

Heat exchanger material

Copper Coil

Free components:

Electric heater, Magnesium rod, T/P valve, Pressure reducing valve

Copper coils size(mm)

100 150 200 250 300 400 500ltrs single coil

Dia.12mm * Length.15 meters



100 150 200 250 300 400 500ltrs double coils

Dia.12mm * Length.30 meters



700ltrs single coil

Dia.12mm * Length.20 meters



700ltrs double coils

Dia.12mm * Length.40 meters



1000ltrs single coil

Dia.12mm * Length.30 meters



1000ltrs double coils

Dia.12mm * Length. 50 meters
