the split pressurized solar water heater has three models:

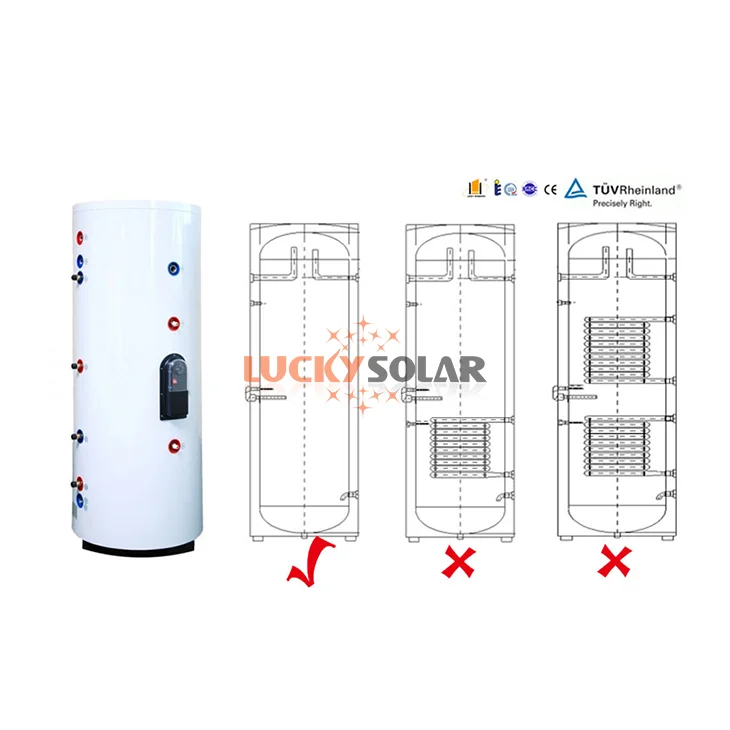

the split pressurized solar water heater has three models: 1. there is no copper coil in water tank. that is to say the water will be in the manifold and tank.using heat pipe to heat water.

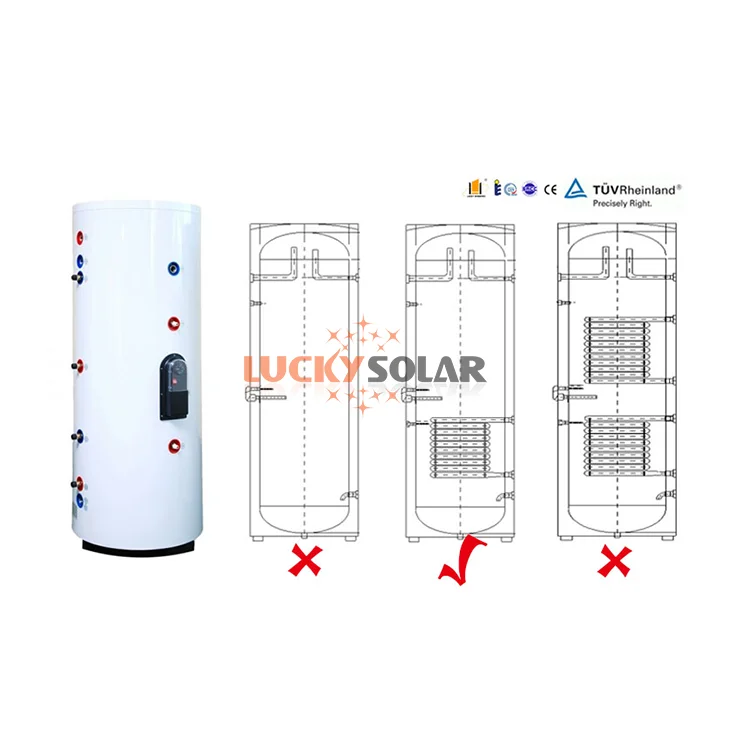

2. there is one copper coil in water tank. that is to say the water only in the water tank. the special liquid
(antifreezing and heat conduction liquid) in the manifold and copper coil.

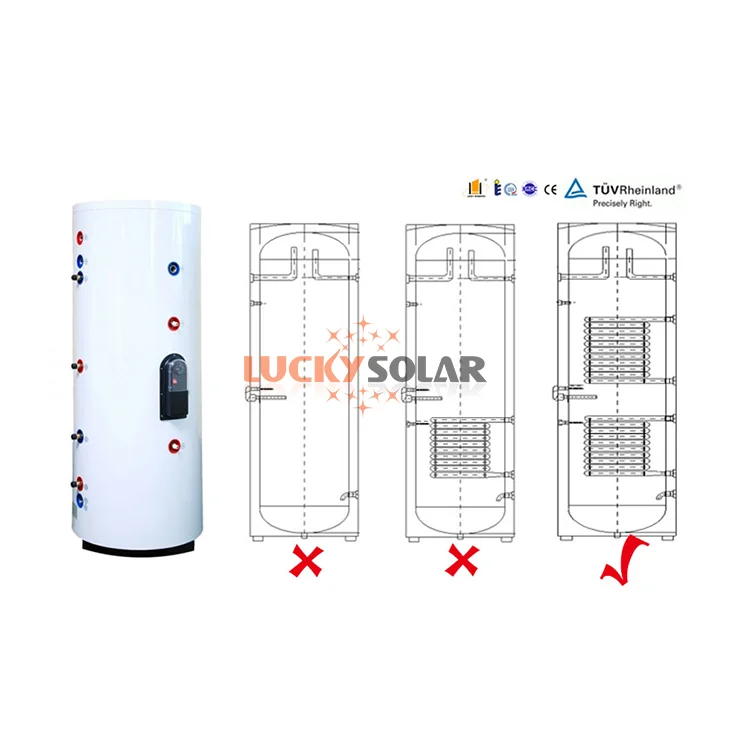

3. there is two copper coil in water tank. the another one, you can use other heat resources.
Outer of hot water
Circulation outlet of upper coil
Circulation inlet of upper coil
Circulation inlet of under coil
Circulation outlet of under coil
Inlet of cold water
Temp sensor pipe for upper coil
Electric elements with thermostat
Temp sensor pipe for under coil

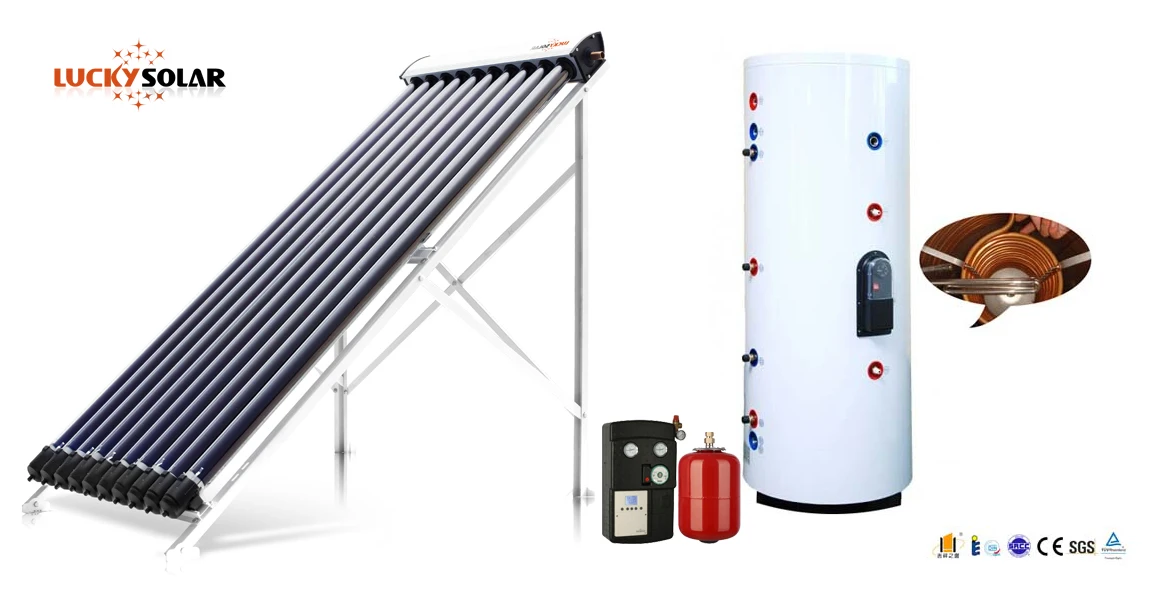

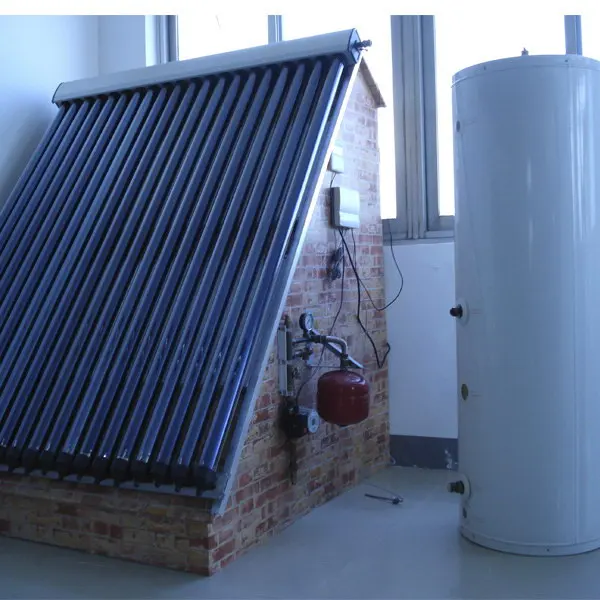

Split heat pipe pressurized solar water heating system is composed of heat pipe solar collector, pressurized
water tank, integrated solar workstation system and its connecting pipeline. Copper coil could be installed in
water tank and connected with solar collector for twice heat exchanging. Solar workstation is an integrated controlling system composed of intelligent controller, circulation pump,
flow meter, relief valve, pressure gauge, expansion vessel, check valve, etc. This kind of heating system manufactured by LUCKY works based on the temperature difference sensed
between solar collector and water tank. When temperature difference sensed is higher than the preset value
in controller, the pump will start to circulate the heat transferring medium in solar collector to release heatenergy into water through copper coil installed in water tank, in this way the water temperature get raised and when it reaches the set max, value, the circulation stops automatically.
« Heat pipe solar collector for thermal transmission, with a quick start up and super heating efficiency
« Supper heat preservation with integrated polyurethane insulation, pressurized working offers much
more comfortable using of hot water
« The structure of system has been simplified by modularized collector and integrated workstation, easy
assembly and installation and maintenance, water tank could be placed randomly indoors
« The system serves all year round even in extremely cold climate
« Long life span system, can be of good service as long as more than 20 years
