Split Pressure Bearing high pressurized Solar water Heater system

FOB Reference Price:Get Latest Price
US $455.88-988.88 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Water Source Heat Pump
Installation:
free standing & wall mounted
Storage / Tankless:
Storage
Housing Material:
color steel, nacre white armor plate
Use:
Bathroom
Certification:
CE, Solar Keymark, EN12975, SRCC, ISO9001
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LUCKY
Model Number:
JXSP-SERIAL
Nums of tubes:
10/12/15/18/20/24/30/36
Magnesium bar:
included
Whole electric heating system:
included
Working station:
included
Expansion pump:
included
control panel system:
included
collector and bracket color:
red, green, black, grey. silver white etc. as you choose
Controlling System:
SP116 , SR 868C
Capacity:
100L 120L 150L 200L 250L 300L 400L 500L 600L 700L
Supply Ability
Supply Ability:
5000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard Export Packing:
1.sample or LCL: specially packaged--packed in carton with foam in it, then to plywood cases
2.FCL: packed in carton with foam in it
Port
Shanghai or Ningbo
Lead Time :
10-15 days



Split heat pipe pressurized solar water heating system is composed of heat pipe solar collector, pressurized
water tank, integrated solar workstation system and its connecting pipeline.


SPlit pressurized solar water heater -- JXSC-solar collector and SP106 working station Split-Solar-Water-Heater-Eadex-High-Pressure-Separated-Solar-Water-Heater-WKSP-20-_



Models

Collectors models

Collector

quantity

Absorber area(m2)

coils

Controller

Expansion vessel

Tank capacity

Qty(set)

20’ft

40’hq

JXSPC-10

SC-10



1.95



868-C8

5L

100L

38

93

JXSPC-20

SC-20



2.6



868-C8

8L

200L

32

78

JXSPC-24

SC-24



3.1





868-C8

8L

200L

29

72

JXSPC-30

SC-15



3.9





868-C8

8L

250L

20

50

JXSPC-36

SC-18



4.65



868-C8

12L

300L

18

44

JXSPC-48

SC-24



7.104



868-C8

24L

400L

16

40

JXSPC-60

SC-30



8.928



868-C8

24L

500L

14

35

the split pressurized solar water heater has three models:

the split pressurized solar water heater has three models:
1. there is no copper coil in water tank. that is to say the water will be in the manifold and tank.using heat
pipe to heat water.
2. there is one copper coil in water tank. that is to say the water only in the water tank. the special liquid
(antifreezing and heat conduction liquid) in the manifold and copper coil.
3. there is two copper coil in water tank. the another one, you can use other heat resources.




External connections:

Item:

Connection:

Outer of hot water

Connection 1

Exhaust pipe

Connection 2

Circulation outlet of upper coil

Connection 3

Circulation inlet of upper coil

Connection 4

Circulation inlet of under coil

Connection 5

Circulation outlet of under coil

Connection 6

Inlet of cold water

Connection 7

Magnesium inlet

Connection 8

Temp sensor pipe for upper coil

Connection 9

Electric elements with thermostat

Connection 10

Temp sensor pipe for under coil

Connection 11

Drain valve

Connection 12

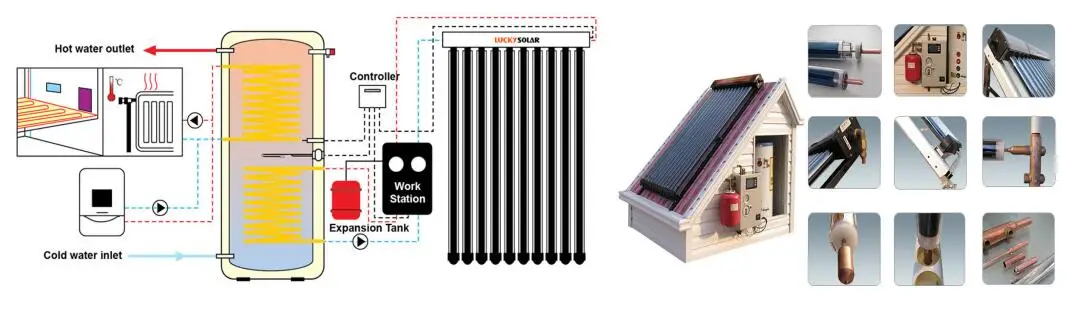

Split heat pipe pressurized solar water heating system is composed of heat pipe solar collector, pressurized
water tank, integrated solar workstation system and its connecting pipeline. Copper coil could be installed in
water tank and connected with solar collector for twice heat exchanging.
Solar workstation is an integrated controlling system composed of intelligent controller, circulation pump,
flow meter, relief valve, pressure gauge, expansion vessel, check valve, etc.
This kind of heating system manufactured by LUCKY works based on the temperature difference sensed
between solar collector and water tank. When temperature difference sensed is higher than the preset value
in controller, the pump will start to circulate the heat transferring medium in solar collector to release heatenergy into water through copper coil installed in water tank, in this way the water temperature get raised and when it reaches the set max, value, the circulation stops automatically.
Split-Solar-Water-HeaterSplit_solar_collector_system_1_0_1350960412

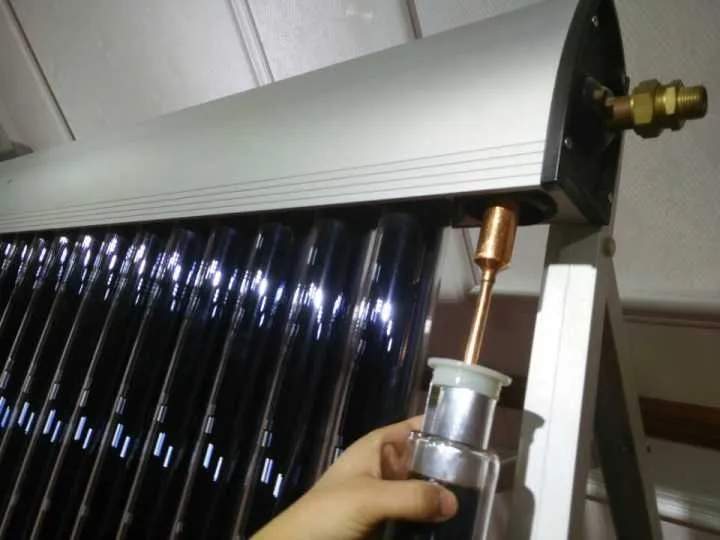

« Heat pipe solar collector for thermal transmission, with a quick start up and super heating efficiency

and anti-freezing

« Supper heat preservation with integrated polyurethane insulation, pressurized working offers much

more comfortable using of hot water

« The structure of system has been simplified by modularized collector and integrated workstation, easy

assembly and installation and maintenance, water tank could be placed randomly indoors

« The system serves all year round even in extremely cold climate

« Long life span system, can be of good service as long as more than 20 years
