1.there is 0,1 or 2 cooper coils in tank that can be chosen
2.intelligent control and automatic operation
3.OEM/ODM is offer
Why choose us?
1) Complete International Certificates: CE, Solar KEYMARK, TUV, SRCC, SGS, ISO, FSEC, ONNCCE, GMC, ALIBABA etc.
2) All product made according to European Standard: solar collector series had passed EN12975-1,2(SOLAR KEYMARK), Solar water heater series had passed EN12976-1,2(SOLAR KEYMARK)
3) Own Excellent product quality: especially our heat pipe vacuum tube collectors have the highest efficiency data, in the top 1 of China.
4) Own the best team, the best quality and the best service for customers!
5) Lucky Solar is a well-known & reputable brand: rely on good quality and complete service.
6) OEM/ODM is available.
1.we can offer different materials for split solar water heater, frame as your demand;
2.we can design the products as the demand of client;
3.we offer OEM and ODM service.

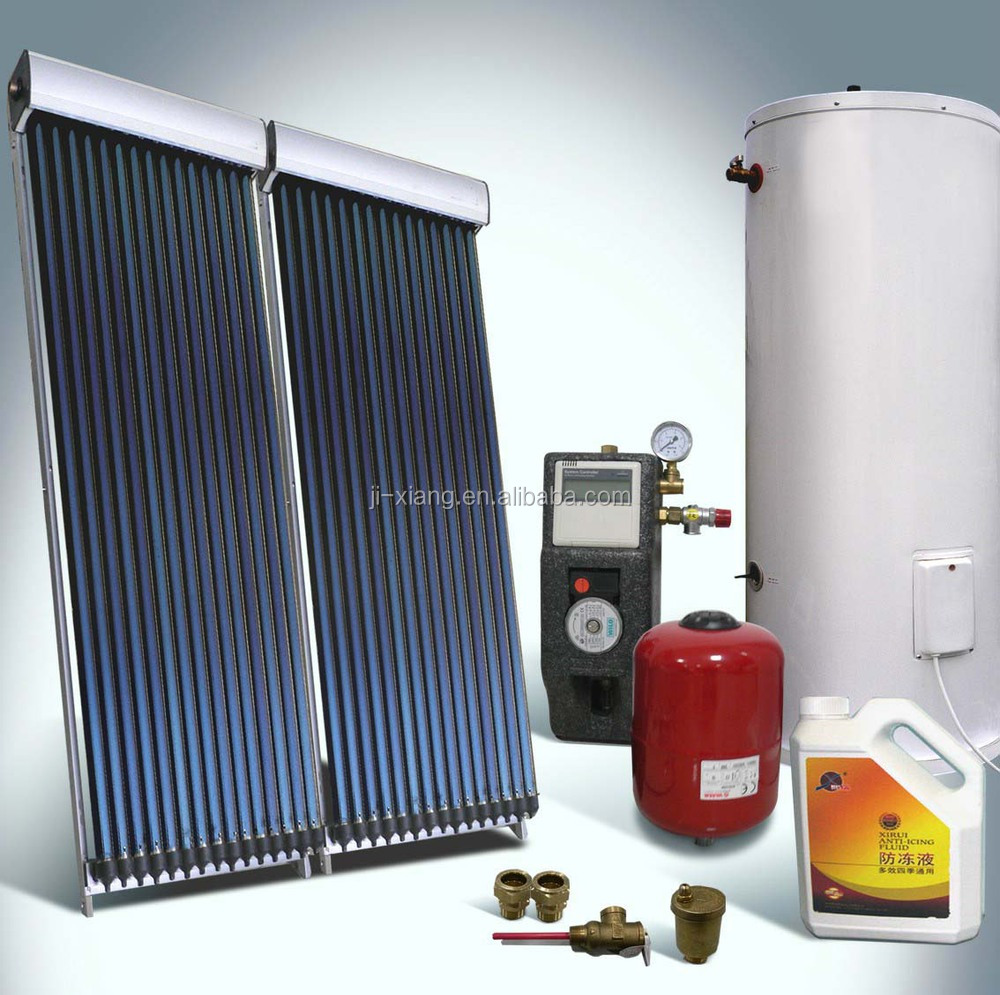

Super Separated Pressurized Solar water heater 1.0.73 conversion ratio 2.Keymark,SRCC,CE certificate 3.10year lifespan
1) Copper pipe with aluminum wrapping in three-target vacuum tube.
2) With intelligent control and automatic operation.
3) Module design, arbitrary combination, harmony with the building.
4) Three years warranty, maintenance free, high efficiency and long time performance.
5) There are 0/ 1/ 2 cooper coils in the tank can be chosen.
The Parameters Table of Split Solar Water Heater
Solar vacuum tube
Tri-elements glass tube with heat pipe, Φ58X1800mm
1). stainless steel SUS304/2B, 1.0~2.0mm thickness;
2). enamel coating,1.0~2.0mm thickness
Galvanized steel, 0.41mm thickness
Water tank structure
0 coiler / 1 coiler / 2 coilers
Polyurethane foam, thickness ≥ 45mm, density ≥ 40kgs/m3
Bracket of collector
Aluminum alloy, thickness ≥ 1.6mm
Circulation pump, pressure gauge, controller, flow meter, etc.
8L / 12L
1.0 MPa / 10 Bar
100L / 150 L / 200 L / 250L / 300L / 400L / 500L
Installation Instruction Split Solar Water Heater with Double Coiled Tank System
