Premium Solar Collector Specification

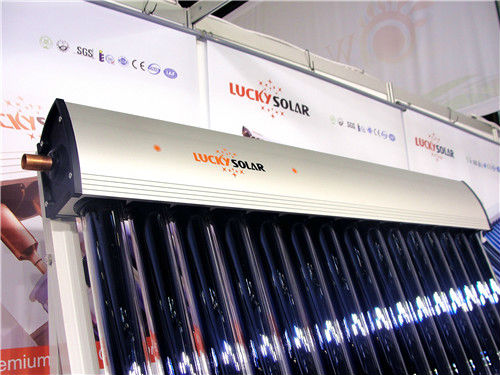

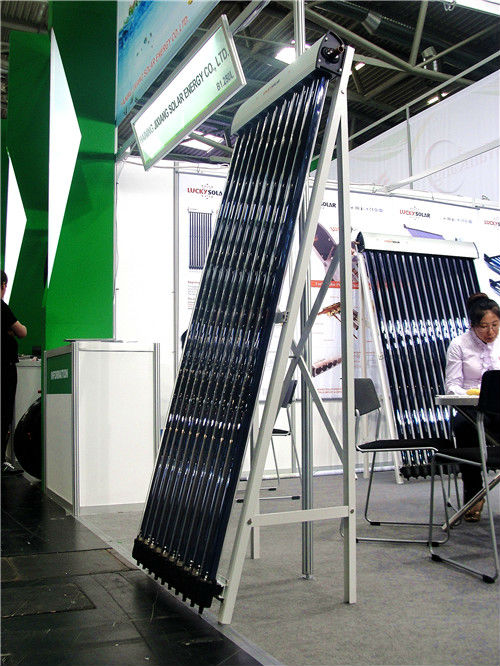

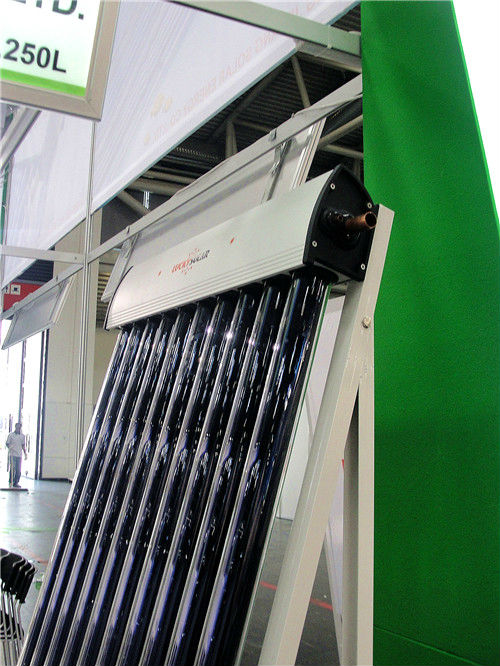

14 20 22 24 mm heat pipe solar collector
14 20 22 24 mm heat pipe solar collector Characteristic:
1. Adopts red copper channel, with great performance of heat exchange.
2. Utilize copper heat pipes containing special medium liquid with low boiling point.
3. Work well in all climate, can be function well even in ambient temperature of minus 30 degree
4. Each heat pipe tube works independent and efficiently.
5. No water flows inside the vacuum tube, no risk of freezing.
6. Withstand high water pressure of up to 1.2 Mpa.
14 20 22 24 mm heat pipe solar collector Material:
1. Manifold: Aluminum alloy
2. Channel: Red copper
3. Heat pipe: Copper
4. Bracket: Aluminum alloy/ Galvanized steel/ Stainless steel
5. Insulation material: Rock wool
14 20 22 24 mm heat pipe solar collector Specification
Three-target Vacuum Tube Performance and Specification:
All-glass double deck co-axial structure
High borosilicate 3.3 glass
Outer tube diameter and glass thickness
Ø58±0.7mm; Glass thickness 1.6±0.15mm
Inner tube diameter and glass thickness
Ø47±0.7mm; Glass thickness 1.6±0.15mm
Three Target magnetron sputtering plating
α =0.92~0.96 (AM1.5)
(temperature inside of empty evacuated tubes)
Average heat loss
ULT 0.4~0.6 W/(m2 *°C)
24mm Premium Heat Pipe Performance and Specification:
Heat pipe material
Oxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm)
Top: Ø14mm/20mm/22mm/ 24mm, Body: Ø8
0.3mm/0.0098’’ thick sets of Aluminum fins,1630mm
Max. operation pressure
Max. testing pressure

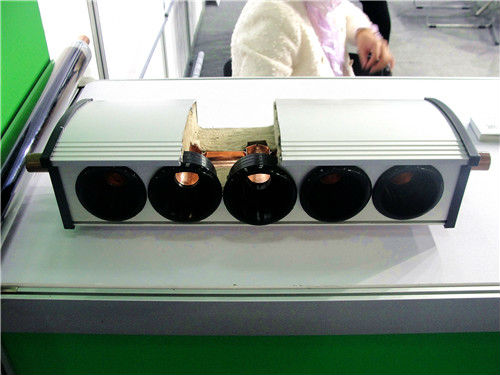

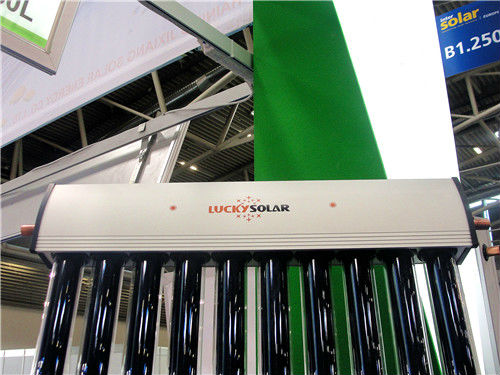

Manifold Performance and Specification:
Manifold header pipe
Anodized aluminum alloy (6063-T5/T6)
Compressed rock wool.
Bracket Performance and Specification:
Vertical installation angle

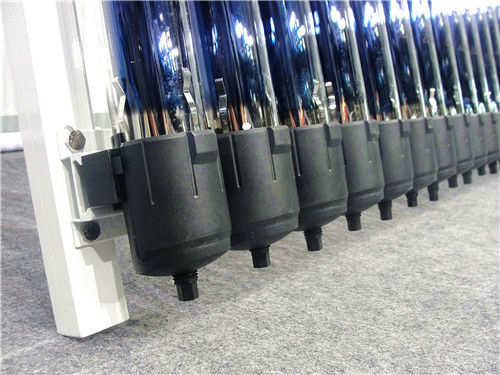

Other Components Performance and Specification:
58 dia. Anti dust rubber ring
Cymene ethylene silicon rubber(110)
58 dia. White inner stopper of heat pipe
58 dia. Tube holder
58 dia. Tube holder cover
End cover for manifold
Left sealed ring
