Split heat pipe vacuum tube pressurized Solar Collector

FOB Reference Price:Get Latest Price
US $99-280 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
5000 Set/Sets per Month
Port:
Shanghai/Ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LUCKY
Model Number:
JXSPC serial
Type:
Pressurized
Application:
Water Heater
Pipe Material:
Glass
Heat Pipe Condenser:
24 mm
Heat pipe material:
TU2 copper
Manifold:
aluminum alloy
Bracket:
aluminum alloy
Certificate:
solar keymark, SRCC, CE
Color:
customized
Warranty:
5 years
Use:
water heater,spacing heating
Installation:
connect with water tank
Packaging & Delivery
Packaging Details
1. Standard export packing for FCL order. 2. Special packing for LCL order.
Delivery Time
10-15 days after receipt of deposit





Product Description



FEATURES
1. Solar KEYMARK (EN12975), SRCC certificate
2. No water in vacuum tubes, each vacuum tube works individually, so the whole system could still work even several tubes are broken.
3. Medium circulation, good anti-freezing and prevent evaporation ability, also avoid blockage in the pipe because of the pipe scale.
4. Multifunction: shower, washing, domestic heating, swimming pool, etc.



STRUCTURE

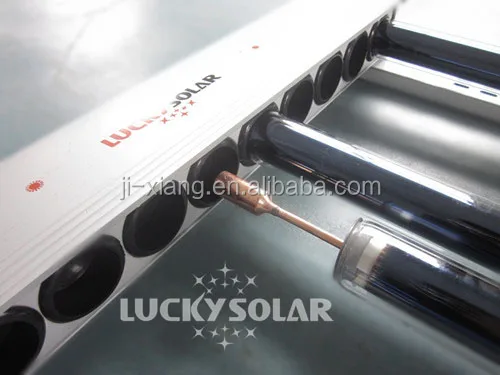

Combining many pieces of solar vacuum tube with copper heat pipe inside as a thermal collector, circularly supply heat energy to cold water through control station (pump, pressure gauge, flow meter, expansion tank, etc.).High quality certified by TUV and SPF, it could work in cold winter and easily install with different construction.



SPECIFICATION DATA



SPLIT PRESSURIZED SOLAR THERMAL COLLECTOR



Item No.

JXSPC-10

JXSPC-15

JXSPC-20

JXSPC-25

JXSPC-30

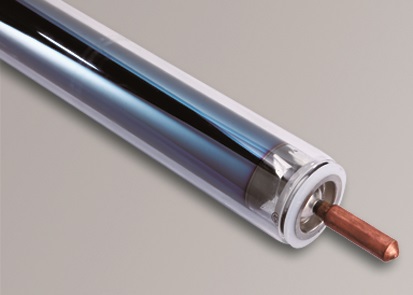

Solar tube

Tri-elements vacuum tube with heat pipe, Φ58X1800mm

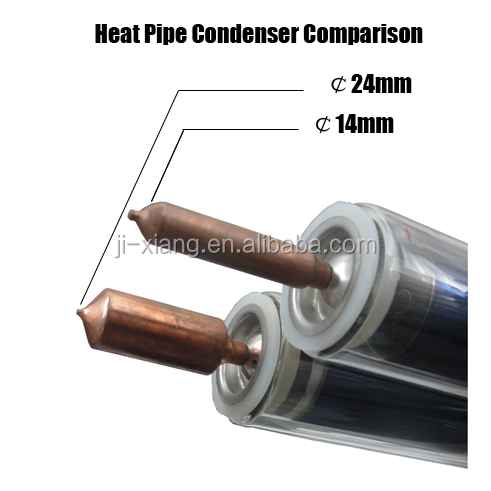

HP condenser

Φ14mm or Φ24mm, 70mm length

HP body

Φ8mm, 1,750mm length

Transferring

Anti-freeze fluid medium (water glycol)

Aluminum fin

Whole piece aluminum fin, 1,600mm length, thickness ≥ 0.2mm

Sealing plug

Silicone rubber with stainless steel cover



Manifold material

Aluminum alloy with Anode electrophoresis, thickness ≥ 2mm

Manifold cover

Heat resisting Nylon plastic parts

Accessories

Anti-water ring, anti-dust cover, silicone rubber



Header pipe

Copper TU2, Φ35mm or Φ42mm,1.0mm thickness

Insulation

Rock wool, thickness ≥ 45mm, density ≥ 50kgs/m3

Bracket

Aluminum alloy with Anode electrophoresis, thickness ≥ 1.6mm

Tube support

Adjustable Nylon plastic parts

Tube QTY.

10 pcs

15 pcs

20 pcs

25 pcs

30 pcs








PRECAUTIONS

 1. Solar for Central Heating-Preventing Overheating
If a system has been designed to provide contribution to central heating, it will often provide much more heat in the summer than is required for hot water supply alone. In such cases it is advisable for the home to have a spa or pool that can use the heat in the summer period or a heat dissipation device be installed.
2. Metallic Components
Always wear glove when handing the various solar collector components. All efforts have been made to make the metal components safe to handle, but there may still be some sharp edges.
3. Evacuated Tubes
Be careful when handing the evacuated tubes, as they will break if knocked heavily or dropped. Wear gloves if handing any broken glass.
4. High Temperatures
With the heat pipe installed in the evacuated tube, and good sunlight, the heat pipe condenser can reach temperatures in excess of 200°C/392°F. At this temperature touching the heat pipe will result in serious burns, so please take care when ” experimenting ” with, or “demonstrating ” the evacuated tube and heat pipes .In an installed, fully plumbed system, if the pump is stopped during good sunlight, the collector header and plumbing pipe close to the manifold can reach temperatures of 160°C/320°F, and therefore caution should be taken when touching such components.
