Metal-glass evacuated solar collector, EN12975 solar keymark, high thermal efficiency 0.68-0.73

FOB Reference Price:Get Latest Price
US $130-405 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LUCKY/ OEM
Model Number:
JXSC-10
Type:
Vacuum Solar Collector
Application:
Water Heater, project,hotel
Pipe Material:
Copper
certification:
CE,solar keymark,SRCC
Color:
customized
manifold material:
aluminum alloy
Heat type:
Evacuated tube
Tube size:
58*1800
Bracket:
galavnized steel
Bracket angle:
25,38,45
warranty:
5 years
Use life:
15 years
SupplyAbility
SupplyAbility:
5000 Set/Sets per Month OEM offer
Packaging & Delivery
Packaging Details
Metal-glass evacuated solar collector,
Standard export carton, special packing for sample
Port
Shanghai/ Ningbo
Lead Time :
within 15 working days upon receipt of deposit

Metal-glass evacuated solar collector Description

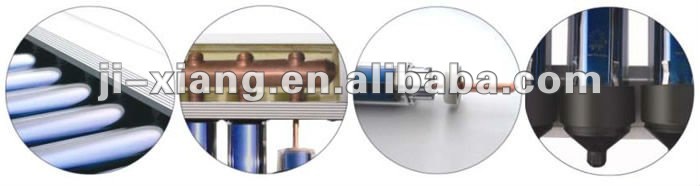

Super-conduct copper heat-pipe in the vacuum tube

Vacuum tube operate without water

There is a copper flow way in manifold

Manifold of collector is made of aluminum alloy

It can be connected with pressure tank

Many collectors can be connected and work together

Material of heat pipe: copper, Diameter: 8mm

Thickness of heat pipe: 0.7mm

The product can work as usual under -30 centigrade degree

Aperture area :1.72x [(x-1) x 0.08+0.058](m2) x =the number of tubes

Intercept efficiency: 93%

Heat loss: 0.22w/m2k

Operating pressure: 0.6Mpa

Hail resistance: 25mm

Size of Inlet/outlet connections: OD20mm





Three target all glass vacuum tube property and specifications
Structure                             All Glass twin tube Co-axical Structure
Glass Material                  High borosilicate 3.3 Glass
External Pipe Diameter and thicknessDia.=58mm±0.7mm & thickness=1.6mm
Internal Pipe Diameter and thicknessDia.=47mm±0.7mm & thickness=1.6mm
Pipe Length1500mm, 1800mm
Absorptive Coating PropertyStructureCu/SS-ALN(H)/SS-ALN(L)/ALN
Sediment MethodThree target magnertron sputtering plating
Specific Absorptionas=0.93~0.96(AM1.5)
Emmision Ratio∈h= 0.04~0.06 (800C±50C)
Vaccum tightnessP≤5.0×10-3(Pa)
Iddle Shining Property ParametersY=260~300m2·0C/KW
Solar Irradiation for obtaining a preset water temperatureH≤4.7MJ/m2(Dia.=58mm)H=3.7~4.2MJ/m2
H≤3.7MJ/m2(Dia.=47mm)H=2.9~3.2MJ/m2
Average Heat Loss CoefficiencyULT=0.4~0.6W/(m2·0C)





Features:

1. Suitable for both flat roof and slope roof

2. Employing sliding way for the frame, much easier for installation, especially suitable for European-styled houses

3. High efficiency: >55% and >40% in winter

4. Still works as normal as before even one vacuum tube destroys

5. Hailstone resistance: 25mm

6. Higher efficiency, stable performance, beautiful design



 (2) Heat-Pipe-Solar-Collector3



The whole system has excellent outlook, easily installation, high performance etc. It is becoming the one of professional products accepted by worldwide users in different field, like domestic hot water supply, big project like: central heating, house heating, hotel, hospital, school, super market/mall, and industry project or any other hot water using area. We will develop and make design according to customer's requirements.Solar heat pipe collector can supply from 15 tubes, 20 tubes, 25 tubes, 30 tubes per unit, and tank/cylinder capacity from 150L, 200L, 250L, 300L......2ton or more. Of course, we can make other model as your requested, like 12 tubes, 18 tubes, 24 tubes etc.
