Super heat pipe solar collector, Evacuated tube solar collector---Solar keymark EN12975

FOB Reference Price:Get Latest Price
US $150-405 / Sets | 1 Set/Sets Larger quantity, lower price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LUCKY/ OEM
Model Number:
JXSC series
Type:
Manifold Collector
Application:
Water Heater
Pipe Material:
Glass
Heat pipe:

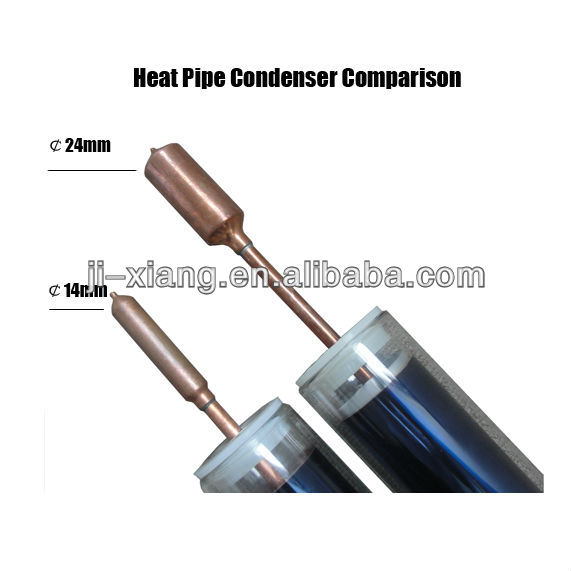

24mm condenser
Supply Ability
Supply Ability:
5000 Set/Sets per Month OEM offer
Packaging & Delivery
Packaging Details
Super heat pipe solar collector
Standard export carton,special packing for sample.
Port
Shanghai/ Ningbo
Lead Time :
10-15 days upon receipt of deposit

Specifications

Super heat pipe solar collector
1. EN12975, Solar key mark,SRCC,CE,ISO
2. 0.68~0.73 premium conversion factor.

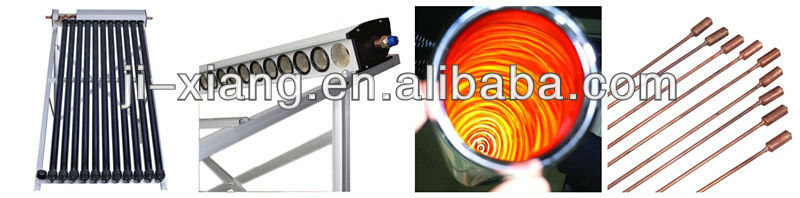

Super heat pipe solar collector Description



Super-conduct copper heat-pipe in the vacuum tube

Vacuum tube operate without water

There is a copper flow way in manifold

Manifold of collector is made of aluminum alloy

It can be connected with pressure tank

Many collectors can be connected and work together

Material of heat pipe: copper, Diameter: 8mm

Thickness of heat pipe: 0.7mm

The product can work as usual under -30 centigrade degree

Aperture area :1.72x [(x-1) x 0.08+0.058](m2) x =the number of tubes

Intercept efficiency: 93%

Heat loss: 0.22w/m2k

Operating pressure: 0.6Mpa

Hail resistance: 25mm

Size of Inlet/outlet connections: OD20mm



                         HEAT PIPE SOLAR COLLECTOR TECHNICAL DATA
MANIFOLDManifold casing materialAnodized aluminum alloy
Manifold header pipeTU2 copper
Insulation layerCompressed rock wool.
VACUUM TUBESStructureSingle target or Three targets - magnetron sputtering plating
Sediment methodAL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN
Tube size58*1800mm
Useful lifeMore than 15 years
HEAT PIPES:Heat pipe materialOxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm)
Heat pipe sizeTop: Dia.24mm, Body: Dia.8mm
BRACKETBracket:Stronger galvanized steel / Stainless steel/aluminium alloy
Bracket angle:0,18,22,38,45 optional, pitched roof, flat roof optional.
Fastening pieces:Made of zinc-coated stainless steel..





Characteristic



1. Adopts red copper channel, with great performance of heat exchange.



2. Utilize copper heat pipes containing special medium liquid with low boiling point.



3. Work well in all climate, can be function well even in ambient temperature of minus 30 degree Celsius.



4. Each heat pipe tube works independently and efficiently.



5. No water flows inside the vacuum tube, no risk of freezing.



6. Withstand high water pressure of up to 1.2 Mpa.





MODEL No.Tube SizeTube No.Aperature AreaGross AreaVolumeGross WeightLoad Qty 20GP/40HQ
Dia.*L( m2 )( m2 )( m3 )( kg )( sets )
JXSC-58-1058x1800mm100.941.60.1535186/452
JXSC-58-1258x1800mm121.221.8520.1842.8155/372
JXSC-58-1558x1800mm151.492.3150.2352122/292
JXSC-58-1858x1800mm181.672.7780.2762.5103/245
JXSC-58-2058x1800mm201.883.0870.2969.396/232
JXSC-58-2458x1800mm242.233.7040.3485.382/198
JXSC-58-3058x1800mm302.824.630.4210466/160





Features:



1. Suitable for both flat roof and slope roof



2. Employing sliding way for the frame, much easier for installation, especially suitable for European-styled houses



3. High efficiency: >55% and >40% in winter



4. Still works as normal as before even one vacuum tube destroys



5. Hailstone resistance: 25mm



6. Higher efficiency, stable performance, beautiful design
