Integrated High Pressurized Solar Water Heater with SRCC,Solar Keymark/ En-12975,CE

FOB Reference Price:Get Latest Price
US $255-388 / Sets | 5 Set/Sets larger quantity ,better price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
color steel
Certification:
CE, SRCC,Solar Keymark,ISO,CE,
Capacity:
220
Place of Origin:
Cocos (Keeling) Islands
Brand Name:
LUCKY
Model Number:
JX-IP Integrated High Pressurized Solar Water Heater
certificate;:
CE,SRCC,SOLAR KEY MARK,ISO9001
Frame::
Stainless steel.galanvized steel.aluminu alloy
Vacuum tube:
Triple target or Single target
Color:
Per request
electric heating:
included
magnesium bar:
included
control panel instrument:
available
bracket angle:
adjustable and available to both slope roof and flat roof
MOQ:
negotiable
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Packing:
1. for sample or LCL:specially packed in carton box with foam, then to plywood cases
2. for Full Container Load: packed in carton box with foam
Port
Shanghai/Ningbo
Lead Time :
10 working days after receipt of your deposit

Specifications

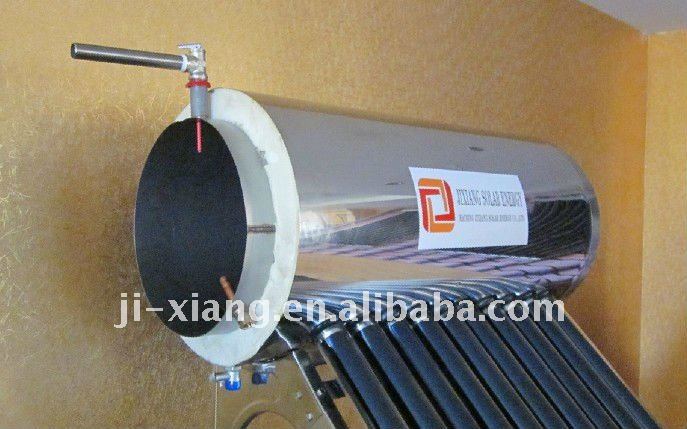

Integrated High Pressurized Solar Water Heater with SRCC,Solar Keymark/ En-12975,CE
1.Integrated Pressurized Solar Water Heater

Integrated High Pressurized Solar Water Heater with SRCC,Solar Keymark/ En-12975,CE



FEATURES :

1. Special high quality Insulated material to reduce the heat loss
2. Excellent workmanship to guarantee the decent appearance, change for your request
3. Long life span and easy operation
4. This type of solar water heater can work in high pressure
5. It uses the heat pipe which can deliver the heat rapidly
6. The vacuum tube will not break in the winter for there is no water in it, even in the coldest area
7. Each vacuum tube works individually, so the machine will still at work in the event of occational vacuum tube breakag
8. Hot water with pressure make you bathe more comfortable

ADVANTAGE :
1. This type of solar water heater can work in high pressure
2. It uses the heat pipe which can deliver the heat rapidly
3. The vacuum tube will not break in the winter for there is no water in it, even in the coldest area
4. Each vacuum tube works individually, so the machine will still at work in the event of occational vacuum tube breakage
5. Hot water with pressure make you bathe more comfortable





Description

Heat Pipe Pressurized Solar Water Heater(SS TYPE )

Material of out tank

0.34 color Steel

Material of inner tank

Food grade 1.2mmSUS304-2BStainless Steel

Tank insulating layer

Imported polyurethane from Bayer Germany, 50mm thickness can conserve the heat for maximum 72 hours

Inlet and outlet hole

Male G 1/2, 3/4

Max pressure

0.05 Mpa

Solar collector tube

3.3 Borosilicate glass with CU/SS/AL coating

Thickness of glass tube

1.6mm

Vacuum tube tightness

P≤0.005 Pa

Absorption

as=0.93-0.96(AM1.5)

Emission ratio

εh=0.04-0.06(80C±5C)

Idle sunning property parameters

Y=220~260m2.C/KW

Average heat loss coefficient

ULT=0.6~0.7W/(m2.C)

Bracket:

Stainless steel SUS-304-2B 1.4mm

welding:

Argon arc welding

fastening pieces:

Made of stainless steel screw

Structure of tank:

7 holes.Magnesium bar,T/P valve,Limber hole,sensor hole,water inlet and outlet hole,electric heater.

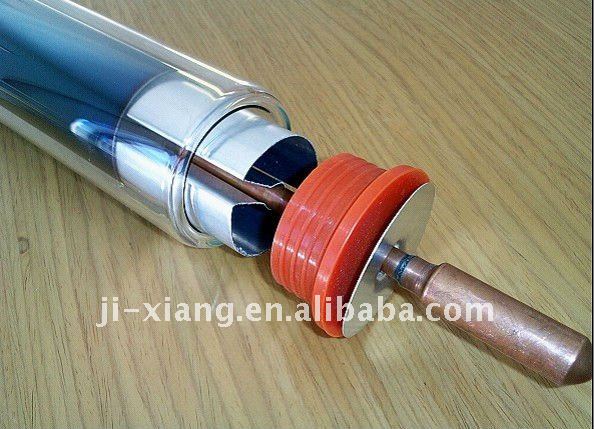

vacuum tube heat pipe.jpg

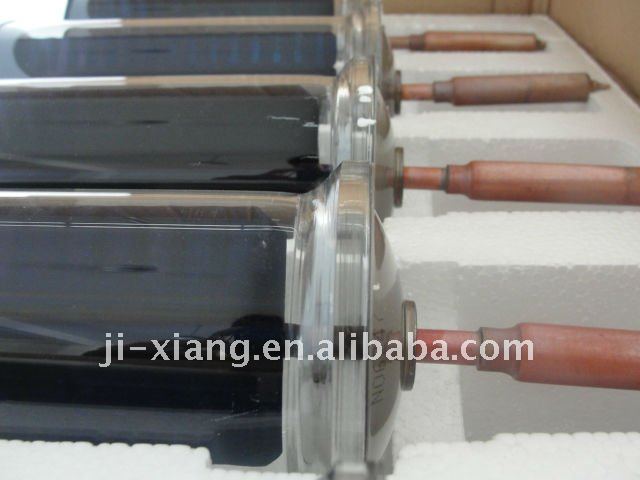

1.comparison of heat pipes.jpg
