Quick Details

  • Type: Evacuated Tube
  • Pressure: Unpressurized
  • Circulation Type: Direct / Open Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: color steel
  • Certification: CE, solar keymark
  • Capacity: 300
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: OEM
  • Model Number: solar water heater
  • Certificate: CE SRCC EN-12975 Solar Keymark
  • tank capacity: 200/250/300/360
  • Vacuum tube: single target all glass / Three target all glass
  • Application: Residential
  • Inner tank: SUS304-2B Stainless Steel
  • Outer tank: Galvanized Steel/0.41mm
  • Color: OEM
  • Frame: Galvanised Steel
  • Warranty: 5 Years
  • MOQ: 1 set

Packaging & Delivery

Packaging Details Pre-heated Pressurized Solar Water Heater:
Standard export packing, special packing for sample.
Delivery Time with 10-15 days upon receipt of deposit
Product details





Product Description

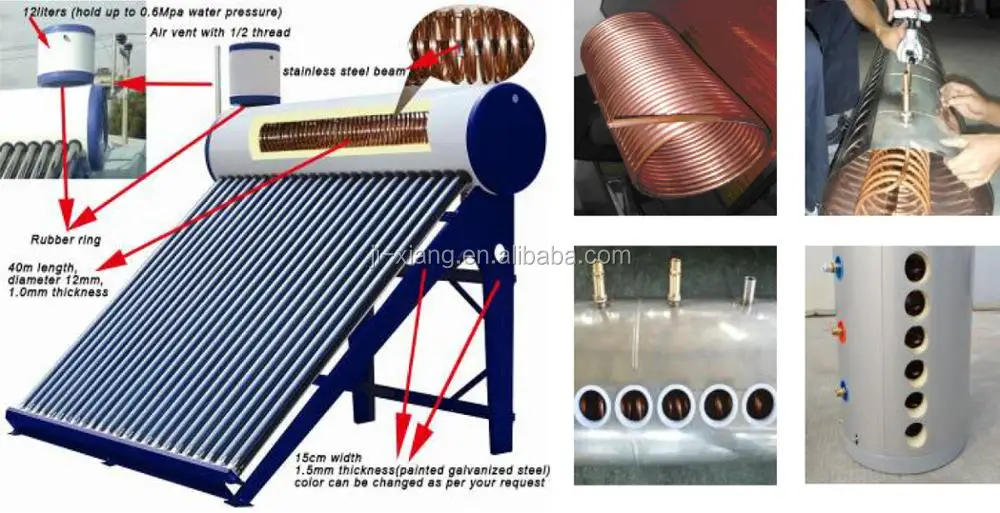

Also named thermosiphon solar water heating system, this type of solar water heater is such a water pre-heating system with a pile of copper coil installed inside water tank as heat exchanger.
Firstly, water in inner water tank will be heated enough by solar accumulation through vacuum tubes, when water from tap goes through copper coil, it will be heated by the hot water surrounded copper coil all the way till out, in the way we get instant hot water which is much more healthy and not limited to the capacity of water tank, and inside copper even makes it a more comfortable pressurized system which could be connected directly with tap water. With an additional auxiliary tank, the system will work automatically to refill water into water tank.



  Model & Specification:
MODEL No.Tube SizeTube No.CapacityAperture Area     Load Qty 20GP/40HQ     Reommending for family
(Dia.*L)(pcs)(litres)( m2 )(sets)(people)
JXPHP-2058x1800mm202001.8635/855
JXPHP-2458x1800mm242402.2332/726
JXPHP-3058x1800mm303002.7926/637
JXPHP-3658x1800mm363603.3522/538





Product feature





Product Parameters:

1. Inner Tank: Food-grade stainless steel SUS304-2B  0.5mm (316 is available)

2. Copper coil: High-quality heat-exchange copper coil  Φ12*1.0mm *40Meters long copper coil inside the water tank

3. Tank Exterior Shell: PVDF Color Steel 0.4mm (there are white, golden, blue and red colors can be chosen) [Stainless Steel is availale]

4. Heat Insulation: High-density polyurethane integrated foam-forming layer with 72~80 hours heat preservation

5. Vacuum Tube: 3.3Borosilicate glass vacuum tube,three-target coating(ALN/ALN-SS/CU),aluminum fin and heat-resisting silicon seal

6. Bracket: Color steel, 1.5mm, universal bracket suitable for slope and flat roof installation (Stainless Steel, Aluminum alloy is alailable)

7. Accessories: Copper connectors, Stainless fasteners, anti-aging silicon seal & dustproof rubber seal

8. Max Working pressure: 8.0 Bar

9. Angle of bracket:0°-45° (there is an adjust frame here to meet both flat roof, slope roof and straddling roof.)

10. Hot water Output:70°C -90°C





Product Details Show





Our Services

Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for you to choose.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question,please contact with us freely by E-mail or Telephone.

Company Information













Why Choose Us?

1.Complete International Certificates: CE, Solar KEYMARK, TUV, SRCC, SGS, ISO, FSEC, ONNCCE, GMC, ALIBABA etc.

2.The first grade product quality: All passed EN12975(12976)-1,2, the heat efficiency of

 Solar Keymark certificate is 0.73209 in the top of China. Very rarely factory can pass

 EN12976 in China.

3.We are full export experience 10 years, over 60 countries in the world.

4.Own the best group of R&D, the best quality and the best service for customers.

5.Lucky Solar is a well-known & reputable brand in China, registered 18 countries brand trademark

6.OEM/ODM is available.
