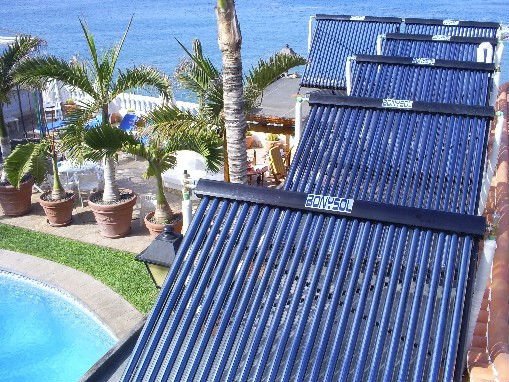

Swimming pool heat solar collector / solar panel in thermal

  • 2 - 79 Sets
    $150.00
  • 80 - 199 Sets
    $138.00
  • >=200 Sets
    $135.00
Type:
Pressurized Vacuum Solar Collector
Application:
Water Heater
Lead Time:
Quantity(Sets) 1 - 80 81 - 200 >200
Est. Time(days) 10 15 Negotiable
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 50 Sets)
Samples:
$210.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Lucky
Model Number:
JXSPC-15
Pipe Material:
Glass
Warranty:
5, 5 Years
Certificate:
Solar Keymark, Solar keymark, SRCC,CE
Material:
Aluminum Alloy
Color:
Silver
Use:
swimming pool, space heating,water heating
Tube size:
58*1800mm
Tube material:
three target tube
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Swimming pool heat solar colletor/ solar panel:
All good are packed in cartoon, Samples are packed in wooden cases.
Port
Shanghai/Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 80 81 - 200 >200
Est. Time(days) 10 15 To be negotiated

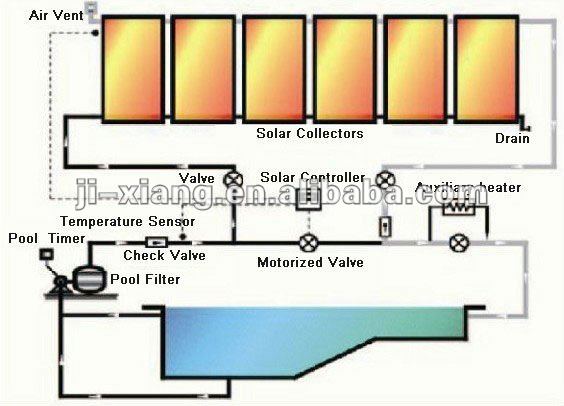

Swimming pool heat solar colletor

HEAT PIPE SOLAR COLLECTOR TECHNICAL DATA
MANIFOLD
Manifold casing materialAnodized aluminum alloy
Manifold header pipeTU2 copper
Insulation layerCompressed rock wool.
VACUUM TUBES
Tube structureAll-glass double deck co-axial structure
Glass materialHigh borosilicate 3.3 glass
Outer tube dia. & thicknessØ58±0.7mm; Glass thickness 1.6±0.15mm
Inner tube dia.& thicknessØ47±0.7mm; Glass thickness 1.6±0.15mm
Tube size58*1800mm
Absorptive coating propertyStructureAL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN
Sediment methodSingle target or Three targets - magnetron sputtering plating
Specific absorption0.90-0.93(AM1.5) / 0.93-0.96(AM1.5)
Emission ratio0.05-0.075(800C±50C) / 0.04-0.06(800C±50C)
Solar irradiation for obtaining a preset water temperatureΦ=58 H≤4.7MJ/m²      H=4.1-4.4MJ/m² / H=3.7-4.2MJ/m²
Vacuum tightness5.0×10¯³ Pa
Idle sunning property parameters220-260 m².C/KW / 260-300 m².C/KW
Average heat loss coefficientULT=0.6~0.7W/(M2.0C) / ULT=0.4~0.6W/(M2.0C)
Resistant Hail≤25mm
Useful life15 years
HEAT PIPES:
Heat pipe materialOxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm)
Heat pipe condenserTop: Dia.14mm/ 20mm/22mm/ 24mm, Body: Dia.8mm
Nickel-plated heat pipe (14mm,20mm,22mm, 24mm) optional, will quote per request
Max.working temp-30 ~250C
ΔT35C(Radiation>=800w/m2.day)
Start-up Temperature<=30C
Resistant Hail≤25mm
Useful life15 years
BRACKET
Bracket:Stronger galvanized steel / Stainless steel/aluminium alloy
Bracket angle:0,18,22,38,45 optional, pitched roof, flat roof optional.
Fastening pieces:Made of zinc-coated stainless steel..
MODEL No.Tube SizeTube No.Aperature AreaGross AreaVolumeGross WeightLoad Qty 20GP/40HQ
Dia.*L( m2 )( m2 )( m3 )( kg )( sets )
JXSC-58-1058x1800mm100.941.60.1535186/452
JXSC-58-1258x1800mm121.221.8520.1842.8155/372
JXSC-58-1558x1800mm151.492.3150.2352122/292
JXSC-58-1858x1800mm181.672.7780.2762.5103/245
JXSC-58-2058x1800mm201.883.0870.2969.396/232
JXSC-58-2458x1800mm242.233.7040.3485.382/198
JXSC-58-3058x1800mm302.824.630.4210466/160
