Stainless Steel Evacuated Tube Solar Water Heater Water Heating System

FOB Reference Price:Get Latest Price
US $160-400 / Sets | 1 Set/Sets Larger quantity, lower price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, SRCC/ISO/SK/CCC/SGS
Capacity:
240
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LUCKY/ OEM
Model Number:
JXIP-serial
Outer tank:
Stainless steel
Inner tank:
SUS304 STAINLESS STEEL
Bracket:
Stainless steel
Tubes:
Evacuated Twin Glass tubes:58/1800mm.47/1700mm
Accesory 1::
Electric heater 1500W
Acceosry 2::
Magnesium rod(help clear water and extend system life)
Acceosry 3::
Digital Controller, Control input water and electric heater.
Application:
Residential
Color:
customized
Warranty:
10 years
SupplyAbility
SupplyAbility:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Anti-corrosion solar water heater Packing:
Standard Export Carton;Special packing for sample orders.
Port
Shanghai/Ningbo
Lead Time :
7-10 days

   Stainless Steel Evacuated Tube Solar Water Heater Water Heating System

solar hot water heating





CE and Solar keymark Certificated Type

MODEL:

Solar Vacuum Tube

Aperture     Area

Gross     Area

Capacity

Loading Qty / sets

Item No.

Qty /[pcs]

Size /[mm]

[M2]

[M2]

[L]

[20GP/40HQ]

475/58*1800 12 tubes 115L

12

Φ58 X 1800

1.12

1.85

115

64/151

475/58*1800 15 tubes 143L

15

Φ58 X 1800

1.41

2.32

143

51/121

475/58*1800 18 tubes 171L

18

Φ58 X 1800

1.69

2.78

171

42/101

475/58*1800 20 tubes 190L

20

Φ58 X 1800

1.87

3.09

190

38/91

475/58*1800 24 tubes 228L

24

Φ58 X 1800

2.25

3.71

228

32/76

475/58*1800 30 tubes 285L

30

Φ58 X 1800

2.81

4.63

285

25/61



 Integrated Pressure Bearing S.W.H System Specification



WATER STORAGE TANK SPECIFICATION

Material of out tank

High quality stainless steel.

Material of inner tank

Food grade SUS304-2B Stainless Steel –1.2mm thickness.

Tank insulating layer

Imported polyurethane,57.5mm thickness can conserve the heat for maximum 72 hours

Tank diameter

475mm

Welding

Argon arc welding

Water tank preformed hole

Magnesium bar, T/P valve, sensor hole, water inlet & outlet hole, drainage.

EVACUATED VACUUM TUBES SPECIFICATION

Tube structure

All-glass double-tube co-axial structure

Glass material

High borosilicate 3.3 glass

Tube dimension

58*1800mm

Outer tube diameter and glass thickness

 Ø58±0.7mm; Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm; Glass thickness 1.6±0.15mm

Absorptive coating property

Structure

Cu/SS-ALN(H)/SS-ALN(L)/ALN

Sediment method

Three targets magnetron sputtering plating

Specific absorption

 0.93-0.96(AM1.5)

Emission ratio

 0.04-0.06(800C±50C)

Solar irradiation for obtaining a preset water temperature

Φ=58 H≤4.7MJ/m²

   H=3.7-4.2MJ/m²

Vacuum tightness

5.0×10¯³ Pa

Idle sunning property parameters

260-300 m².C/KW

Average heat loss coefficient

ULT=0.4~0.6W/(M2.0C)

HEAT PIPES SPECIFICATION

Heat pipe material

TU1 copper

Heat pipe condenser size

Top: Ø14mm*70 mm, Bo

Heat-transfer-fins

Complete (SINGLE) al-alloy fins, 1.63meters.(the best)

Max.working temp

-30 ~250C

ΔT

35C(Radiation>=800w/m2.day)

Start-up Temperature of heat pipe

<=30C

Resistant Hail

≤25mm

Useful life

15 years

BRACKET SPECIFICATION

Bracket

Stainless steel 201 or 2.0mm aluminum alloy (optional)

Bracket angle

We have 0 25,38,45 structure for selection, sloping roof bracket cheaper a little bit

Fastening pieces

Made of zinc-coated stainless steel.

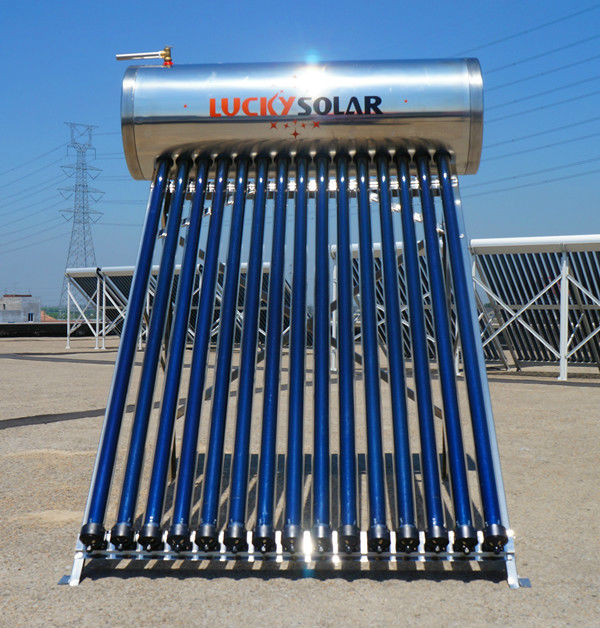

JIXIANG - Integrated Pressurized S.W.jpg QQ20130815153726.jpg

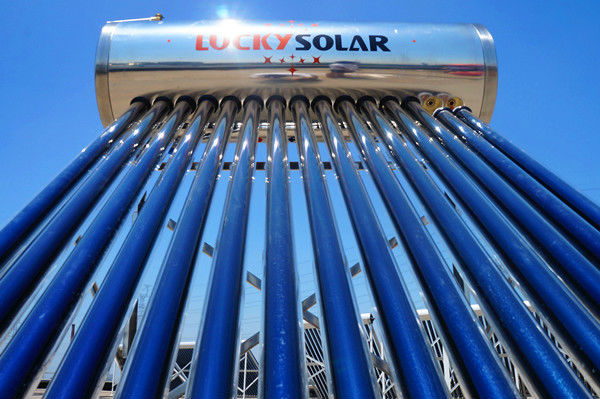

SS heat pipe solar water heaters of 143ltrs 03.jpg
