Preminum Solar Collector Specification
Three-target Vacuum Tube Performance and Specification:
All-glass double deck co-axial structure
High borosilicate 3.3 glass
Outer tube diameter and glass thickness
Ø58±0.7mm; Glass thickness 1.6±0.15mm
Inner tube diameter and glass thickness
Ø47±0.7mm; Glass thickness 1.6±0.15mm
Three Target magnetron sputtering plating
α =0.92~0.96 (AM1.5)
(temperature inside of empty evacuated tubes)
Average heat loss
ULT 0.4~0.6 W/(m2 *°C)
24mm Premium Heat Pipe Performance and Specification:
Heat pipe material
Oxygen free copper (TU1),Cu=Ag>99.99%(o2<16ppm)
Top: Ø24mm *65mm,Body: Ø8*0.6mm.length:1750± 10mm
0.3mm/0.0098’’ thick sets of Aluminum fins,1630mm
Max. operation pressure
Max. testing pressure
Manifold Performance and Specification:
Manifold header pipe
Anodized aluminum alloy (6063-T5/T6)
Compressed rock wool.
Bracket Performance and Specification:
2.0mm thickness aluminum alloy
Vertical installation angle
Flat & pitched roof
Solar Water Tank Specification
Working Station with Controller

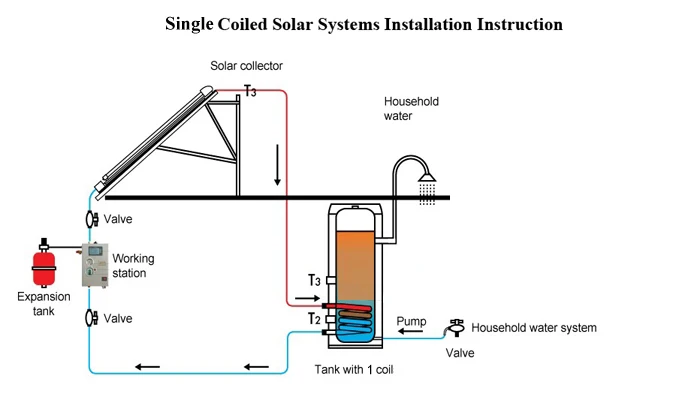

Sketch Map Of Product
Our Service For YOU
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
Haining Jixiang Solar Energy Co.,Ltd(Lucky) is a new high-tech company
specializing in developing and utilizing of solar energy, Locating in Haining city,
we are specialized in the research and application of solar energy and manufacture
of all kinds of solar water heaters, eco-friendly oven and integrative ceiling and PVC panels ect.
Our ability : 5000pcs/month.
China factory supplier. Take sample order, min order 1pcs.
Why Choose Us?
1.Complete International Certificates: CE, Solar KEYMARK, TUV, SRCC, SGS, ISO, FSEC, ONNCCE, GMC, ALIBABA etc.
2.The first grade product quality: All passed EN12975(12976)-1,2, the heat efficiency of
Solar Keymark certificate is 0.73209 in the top of China. Very rarely factory can pass
EN12976 in China.
3.We are full export experience 10 years, over 60 countries in the world.
4.Own the best group of R&D, the best quality and the best service for customers.
5.Lucky Solar is a well-known & reputable brand in China, registered 18 countries brand trademark
6.OEM/ODM is available.
B.Professional Production Line
