Pressurized Solar Heating System

FOB Reference Price:Get Latest Price
US $288.88-1,288.8 / Sets | 1 Set/Sets larger quantity,better price (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Other
Certification:
CE
Capacity:
300
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JIXIANG /OEM, LUCKY
Model Number:
JX-Seperated pressure bearing type
certificate:
SOLAR KEY MARK,SRCC,CE,ISO9001,CCC
Vacuum tube:
tri-target vacuum tubes of 58*1800mm dimension
Heat pipe dimension:
24mm(14,20,22mm,optional)
Heat pipe condenser:
Nickel heat pipe condenser(copper heat pipe,optional)
Supply Ability
Supply Ability:
5000 Set/Sets per Month 5,000pcs/month
Packaging & Delivery
Packaging Details
Packing:
1. Standard export packing for FCL order
2. Special packing for LCL order
Port
Shanghai/Ningbo
Lead Time :
10 to 15 working days upon receipt deposit

Specifications

Pressurized Solar heating system
1.0.68~0.73 conversion ratio
2.Keymark,SRCC,CE certificate
3.20years lifespan

Pressurized Solar Heating System

with SOLAR KEYMARK, SRCC,CE, ISO9001 Certification

Three-target Vacuum Tube Performance and Specification  :

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø58±0.7mm; Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm; Glass thickness 1.6±0.15mm

Tube dimension

58*1800mm

Absorption
coating
property

Coating material

CU/SS-ALN(H)/SS-ALN(L)/ALN

Sediment method

Three Target magnetron sputtering plating

Absorptivity

α =0.92~0.96 (AM1.5)

Emission ratio

Emission: ε=0.04~0.06(80°C±5°C)

Vacuum degree

P≤5.0X10-3(PA)

Stagnation temperature

(temperature inside of empty evacuated tubes)

260~300 °C

Average heat loss

ULT 0.4~0.6 W/(m2 *°C)

Hail resistance

Ø25 mm

Pressure-endure

1MPa

Absorber area per tube

0.08M2



Super Heat Pipe Performance and Specification:

Heat pipe material

Oxygen free copper (TU1),Cu=Ag>99.99% with nickel coating

Condenser dimensions

Top: Ø24mm *65mm,
Body: Ø8*0.6mm.length:1750± 10mm

Heat-transfer-fins

0.3mm/0.0098’’ thick sets of Aluminum fins,1630mm

Heat transfer fluid

Pure water + Copper powder

Centering tube stopper

Silicone seals

Starting speed:

30S

Heat resistance:

0.02°C/W

Heat exchange output

>100W - >135W

Working pressure:

4×106 Pa

The temperature range of anti-freeze heat pipe:

-40°C~300°C



Manifold Performance and Specification:

Manifold header pipe

TP2 copper

Manifold casing

Anodized aluminum alloy

Insulation layer:

High density rock wool.45mm

Density of insulation (kg/m3)

90



Bracket Performance and Specification:

Bracket:

Stronger galvanized steel structure

Vertical installation angle

20-700

Rubber components

HTV silicon rubber (UV stabilized )

Density/ Maximum working temp. /Tensile Strength

1.15g/cm3 +/- 0.05 / 3000C /6.4Mpa





JXSPC-Solar Collector Data Sheet:

JXSPC-SERIAL

Size

Tube Quantity

Heat Pipe Condenser

Aperture

Area

Gross Area

Gross Length

Gross Width

Gross Height

[mm]

[pcs.]

[mm]

[M2]

[M2]

[mm]

[mm]

[mm]

JXSPC-10

58x1800

10

24

0.941

1.600

2290

673

130

JXSPC-12

58x1800

12

24

1.128

1.852

2290

808

130

JXSPC-15

58x1800

15

24

1.410

2.315

2290

1010

130

JXSPC-18

58x1800

18

24

1.692

2.778

2290

1212

130

JXSPC-20

58x1800

20

24

1.880

3.087

2290

1347

130

JXSPC-25

58x1800

25

24

2.350

3.858

2290

1683

130

JXSPC-30

58x1800

30

24

2.820

4.630

2290

 2020

130





Pressure Solar Water Tank Performance and Specification:



1. Outer tank material: Powder coated color steel
2. Inner tank material: SUS304-2B stainless steel
3. Single copper coil water tank and double copper coil water tank
4. Density material: 45kg/m3
5. Auxiliary heating electric heating
6. Insulation material: 50/55/60mm thickness Polyurethane foam







JIXIANG SOLAR.jpg





JIXINAG-- solar collector 4.JPG



  JIXIANG -Intersolar Europe 2012 -01.jpg

JIXIANG -Intersolar Europe 2012 -02.jpg



JIXIANG -Canton Fair China  2011 -03.JPG

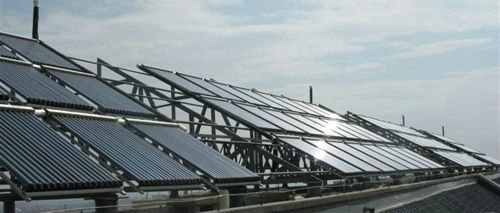

JIXIANG --Solar Collector project.jpg
